Leviton PT544-2GY, Pre-Wired ''Door-in-Door'' Floor Cover, For Use with Leviton 5'' Poke Through Floor Box (PT500) Only, Gray
Regular price
$338.53
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
*Poke-Through covers are sold separately from the PT500 system

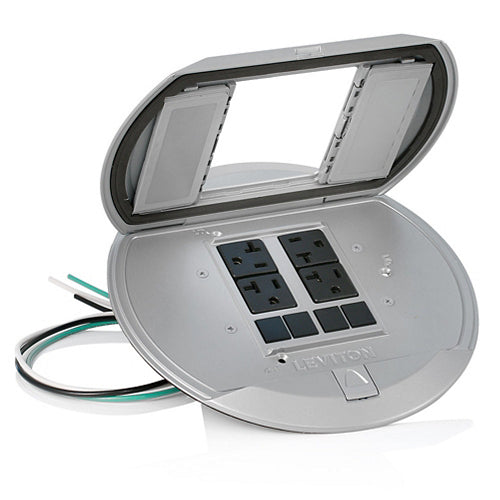

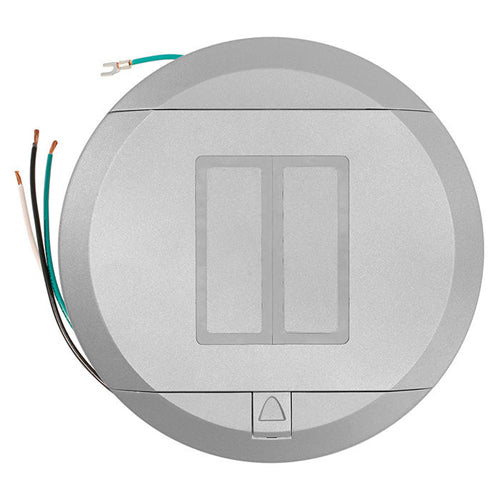

"Door-In-Door" Cover For Use With Leviton 5" Poke Through Floor Box (PT500) Only; Includes 2 Flip Lids That Fold Into The Main Lid To Hide All Hinges And Doors While In Use. Comes With Pre-Wired, Modular, 20A Receptacles and 4 QuickPort inserts; Also Includes Pre-Assembled Gasket And Mounting Screws, Brass
- Industry-exclusive design hides flip lids and allows the door to remain flush even when the outlets are in use; spring loaded button opens main lid
- Pre-wired with 4, 20A receptacles and 4 QuickPort inserts
- Only three cover assembly screws allow for easy installations and removals
- ADA-Compliant
- Available in nickel, brass, black or gray powder coat
| Device Type | Pre-Wired Cover |
| Type | Poke-Through |
| Feature | Pre-Wired Four 20A Simplex Receptacle Assembly |
| Color | Gray |
| Gasket | Pre-installed on Cover |
| Openings | Flip Lid; Doors store inside cover |
| Receptacle Compatibility | Up to 4 QuickPort Jacks |
| Dimensions | 8.38'' Diameter X 0.46'' High |
| Lead Length | 21'' |
| Wire Gauge | 12 AWG THHN Wire |
| Cover Material | Aluminum |
| Operating Temperature | -40°C to 70°C |
| Certifications | cULus |
| Warranty | 2-Year Limited |
