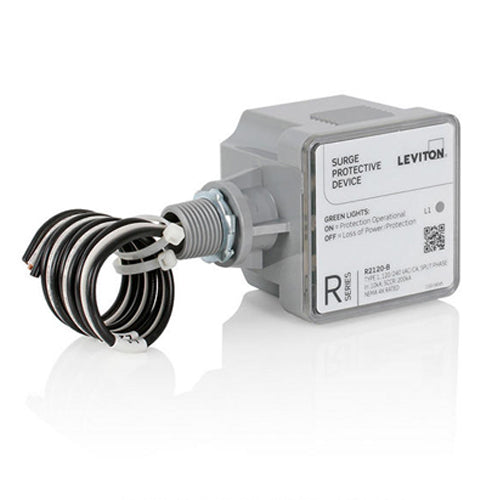

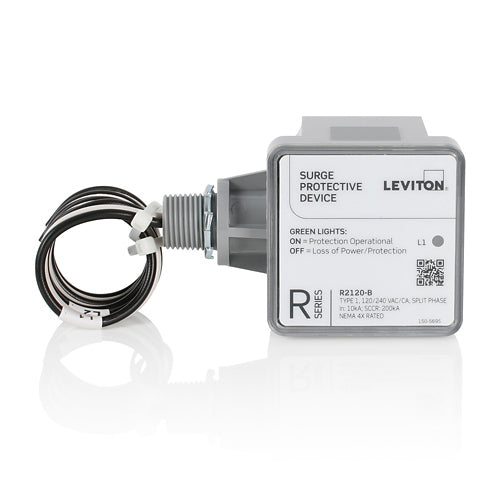

Leviton R2120-B, R Series Type 1 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 36kA per Mode/36kA per Phase, 200kA Short Circuit Current Rating (SCCR), NEMA 4X Rated Enclosure, Gray
Regular price
$213.12
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
R Series Type 1 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 36kA per Mode/36kA per Phase, 200kA Short Circuit Current Rating (SCCR), 10kA I-nominal (ln) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-L: 1200, Maximum Continuous Operating Voltage (MCOV): 180/360V, Plastic Enclosure, LED Status Monitoring, UL 1449 Listed, Approximate Lead Length = 18", White
| Series | R Series |
| Surge Protection | Type 1 |
| Color | Gray |
| Voltage Configuration | 120/240V AC/CA Split Phase |
| Type | 1 |
| Surge Technology | Thermally Protected MOVs |
| Short Circuit Current Rating | 200kA |
| Maximum Surge Current, Per Mode (Per Phase) | 36kA, (36kA) |
| Recommended Circuit Breaker Rating | 20A |
| MCOV | 180V |
| Frequency | 50/60Hz |
| Nominal Discharge Current Rating | 10kA |
| Protection Modes | Reduced Mode of Protection (L1-N, L2-N) |
| VPR L-L | 1200V |
| VPR L-N | 700V |
| Connection Type | #14 AWG |
| Connector | 1/2'' NPT Side Mount Nipple |
| Dimensions | 4.25'' x 2.41'' x 2.75'' |
| Enclosure Material | Polycarbonate |
| Mount | Surface |
| NEMA Rating | NEMA 4X |
| Humidity Range | 0 to 95% Non-Condensing |
| Storage Temperature | -49°F to 140°F (-45°C to 60°C) |
| Certifications | UL, RoHS, CSA |
| Warranty | 5-Year Limited |
