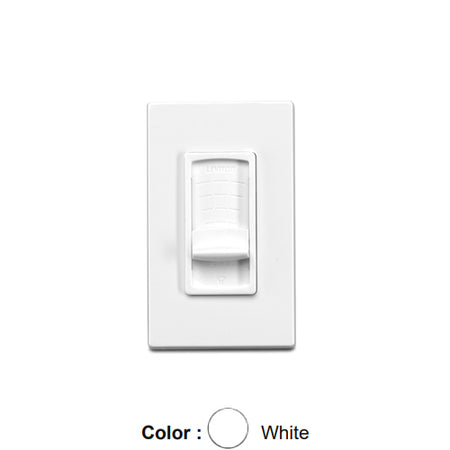

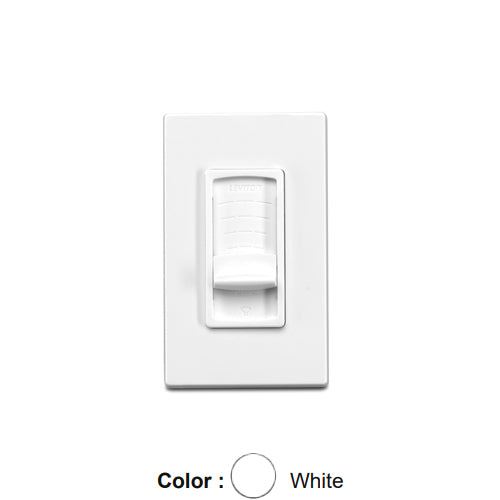

Leviton SGVST-W, Decora Strauss Transformer-Free Slider Volume Control, Analog, 200 Watts Peak, 100 Watts RMS, 8 Ohm Nominal, White
Regular price
$178.08
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Features Decora® slide control with precision 12-positon switch (including full OFF position)
- Transformer-Free attenuation technology ensures linear frequency response, signal integrity and high power handling ability
- Cermetile resistors replace conventional autoformers to preserve audio signal purity
- Detachable cable connector is compatible with all standard speaker wire sizes (14-18 gauge)
- Can be used outdoors when mounted with any compatible Decora® all weather cover
- Provides the ability to adjust the volume of a pair of stereo speakers within a single listening zone
- Designed to be mounted in a single-gang wallswitch box
- Connector type: 0.200” eight pin in-line straight Phoenix plug with screw terminals (included)
| Style Name | Leviton Spec-Grade Sound |
| Type | Volume Control |
| Color | White |
| Resistor Type | Cermetile |
| Technology | Digital |
| Switch Type | Slide |
| Switch Positions | Precision 12-Position |
| Power Handling RMS | 100 Watts RMS |
| Power Handling Peak | 200 Watts Peak |
| Mounting Location | Wall Mount |
| Attenuator Type | Transformer-Free |
| Impedance | 2-16 Ohms Nominal 8 Ohms |
| Frequency Response | 20Hz-20kHz +/- 1dB |
| Depth | 2.50 Inch/63.5 mm |
| Height | 4.06 Inch/103.2 mm |
| Width | 1.31 Inch/33.4 mm |
