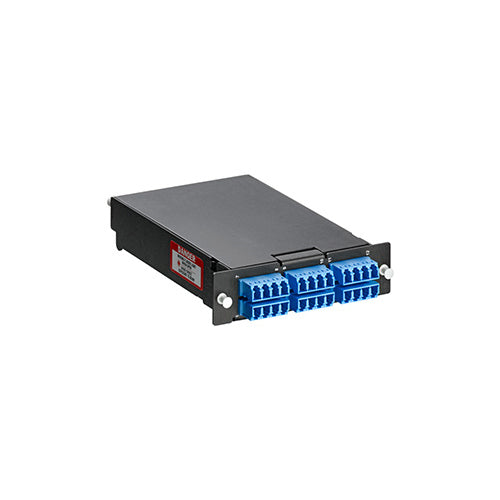

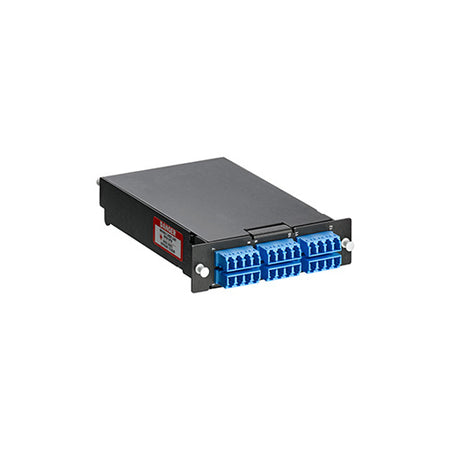

Leviton SPLCS-24L, SDX Pigtail Fusion Metal Splice Module, Pre-Loaded with Duplex LC Adapters (Blue) and 24-Fiber OS2 LC/PC Individual Pigtails, Includes 40mm Splice Sleeves

SDX 12- and 24-Fiber Metal Modules protect and organize heat-shrink fusion spliced fibers (up to 12 or 24 fibers) inside a fiber enclosure. The modular design enables faster field splicing and simple management of pigtails within the housing. Fiber splice modules eliminate the need for individual splice trays within a fiber enclosure and provide optimal organization and slack management of fibers. Typical applications include Wide Area Networks (WAN), campus environments, high-count riser buildings, government installations, data centers, and central offices.

• Module integrates fiber adapter bulkhead (12 or 24 fibers) and splice holders, eliminating the need of fiber splice trays
• Offered in single-mode (OS2) UPC and APC and laser-optimized multimode OM3 and OM4 fiber types
• Individual compartments provide slack storage and bend radius guides for respective backbone cable, 900 µm tight-buffer pigtails, and fusion-spliced fibers
• 12-fiber, color-coded 900 µm tight-buffer pigtails are one meter and pre-loaded in module per specific configuration
• Modular design allows for ease of maintenance of individual spliced fiber and allows for scaling up without impacting existing fibers
• Accessory kit consists of 40 mm heat-shrink style fiber splice sleeves, tie wraps, and braided mesh sleeve
