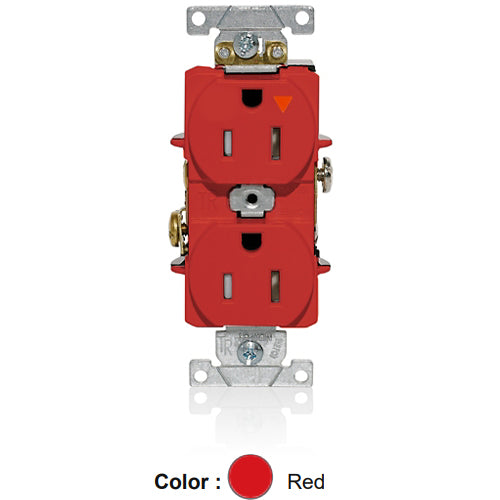

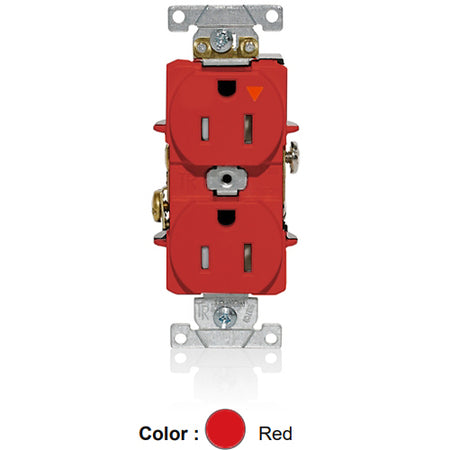

Leviton T5262-IGR, Tamper-Resistant Standard Straight Blade Duplex Receptacle, Heavy-Duty Industrial Specification Grade, Smooth Face, Isolated Ground, 15A 125V, NEMA 5-15R, 2-Pole, 3-Wire, Back and Side Wire, Red
Regular price
$33.79
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Device Type | Duplex Receptacle Outlet |
| Grade | Heavy-Duty Industrial Specification Grade |
| Feature | Smooth Face, Tamper-Resistant |
| Function | Isolated Ground |
| Color | Red |
| NEMA | 5-15R |
| Amperage | 15 A |
| Voltage | 125 VAC |
| Pole | 2 |
| Wire | 3 |
| Face Material | PBT Polyester Blend |
| Strap Material | Steel (Galvanized G60) |
| Termination | Back and Side Wire |
| Terminal Accom. | #14 AWG - #10 AWG |
| Wire Type | Stranded or Solid |
| Operating Temperature | -40°C to 75°C |
| Certifications | cULus, NOM-ANCE, RoHS |
| Warranty | 10-Year Limited |
