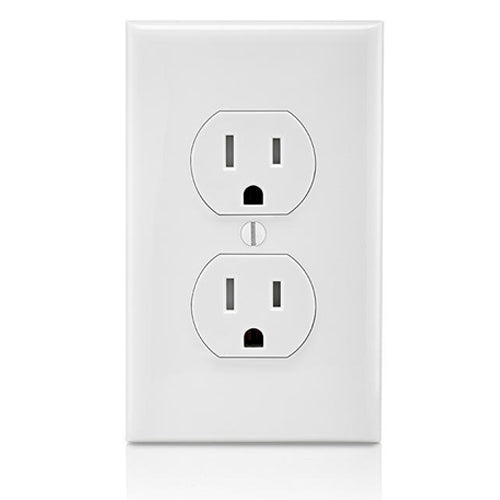

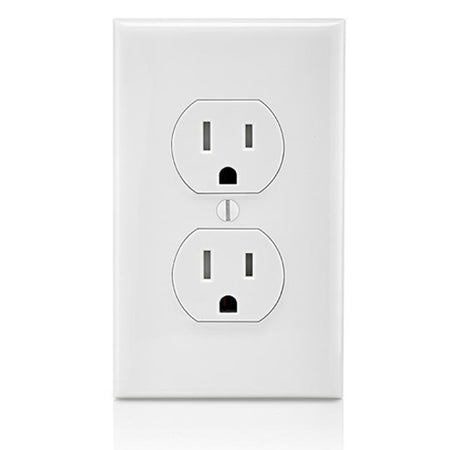

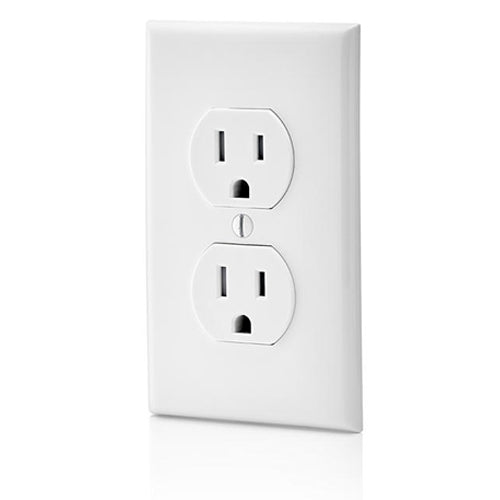

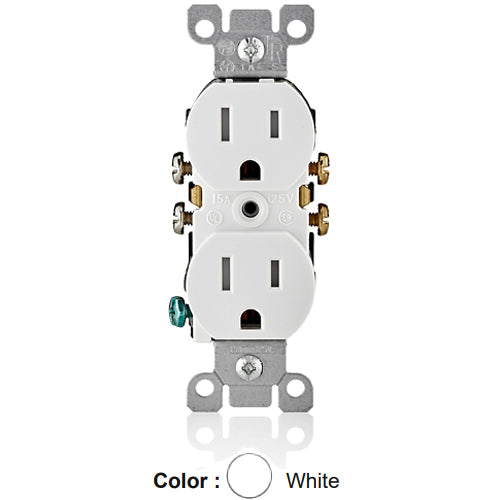

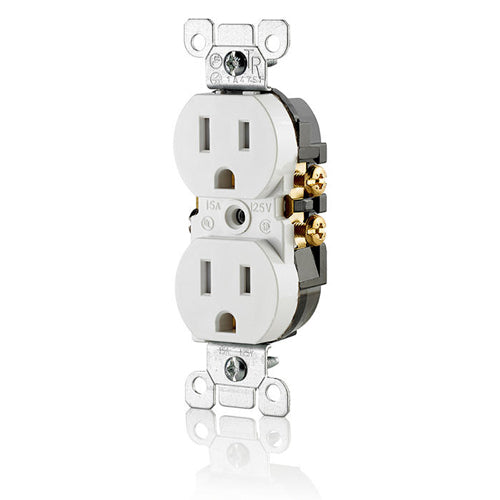

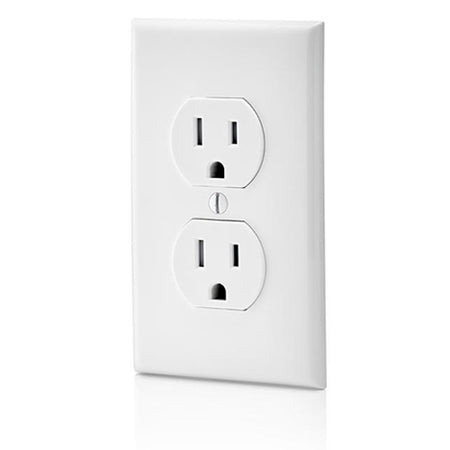

Leviton T5320-W, Tamper-Resistant Straight Blade Duplex Receptacle, Residential Grade, 15A 125V, NEMA 5-15R, 2-Pole, 3-Wire, Quickwire Push-In & Side Wired, White, 3 Packs
Regular price
$8.82
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
* List price is for 3 Packs
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- TR symbol on strap assures they meet the latest NEC requirements
| Device Type | Duplex Receptacle |
| Blade Type | Straight Blade |
| Grade | Residential Grade |
| Feature | Tamper-Resistant |
| Color | White |
| NEMA | 5-15R |
| Amperage | 15 A |
| Voltage | 125 VAC |
| Grounding | Grounding |
| Pole | 2 |
| Wire | 3 |
| Termination | Quickwire Push-In & Side |
| Certifications | UL, CSA, NOM |
| Warranty | 2-Year Limited |
