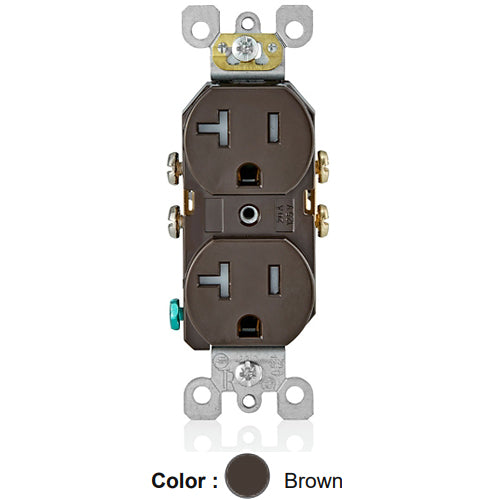

Leviton T5820, Tamper-Resistant Straight Blade Duplex Receptacle, Residential Grade, 20A 125V, NEMA 5-20R, 2-Pole, 3-Wire, Self Grounding, Side Wired Only, Brown, 2 Packs
Regular price
$9.15
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
* List price is for 2 Packs
-
Mechanical shutter mechanism prevents access to contacts unless a two-pronged plug is inserted, helping ensure that foreign objects will be locked out
-
TR symbol on receptacle face assures they meet the NEC Section 406.11 code requirements
-
Ultrasonically welded for additional assembly security
-
Base and face made of high impact thermoplastic
-
Convenient break-off plaster ears for best flush alignment
-
Self-grounding clip staked on, will never fall off
-
Easily accessible break-off tabs when split feed wiring is required; allows easy two circuit conversion
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
| Device Type | Duplex Receptacle |
| Blade Type | Straight Blade |
| Grade | Residential Grade |
| Feature | Tamper-Resistant |
| Color | Brown |
| NEMA | 5-20R |
| Amperage | 20 A |
| Voltage | 125 VAC |
| Grounding | Self-Grounding |
| Pole | 2 |
| Wire | 3 |
| Body Material | Thermoplastic Nylon |
| Termination | Side Wired |
| Certifications | UL, CSA, NOM |
| Warranty | 2-Year Limited |
