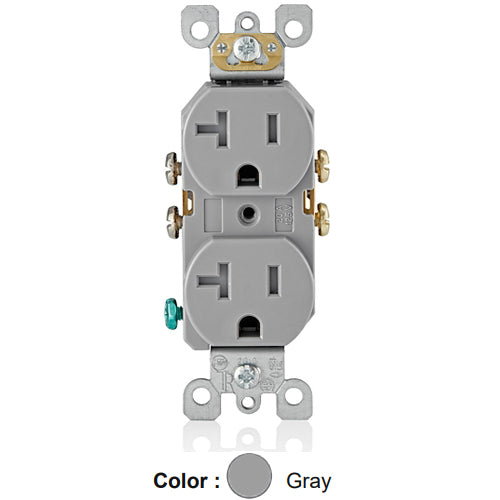

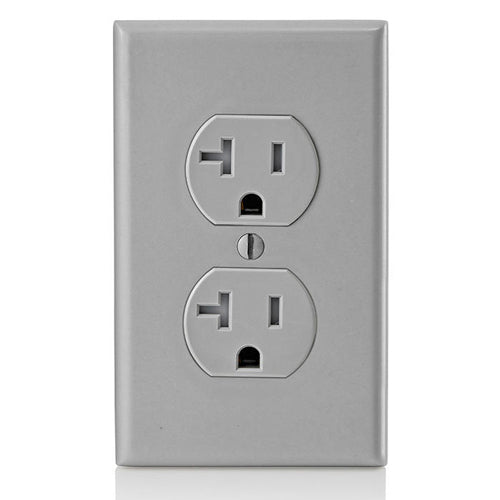

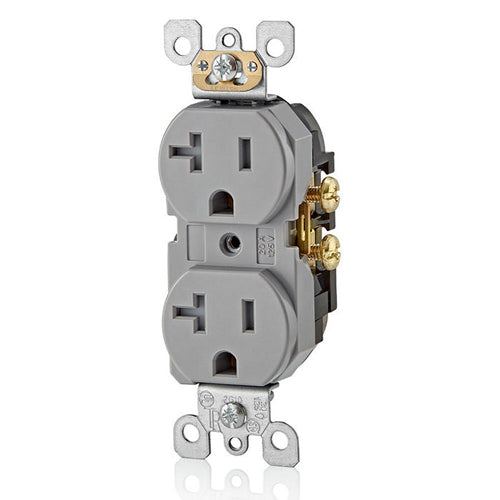

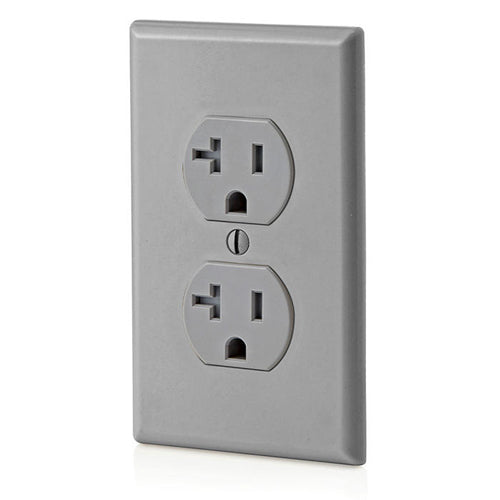

Leviton T5820-GY, Tamper-Resistant Straight Blade Duplex Receptacle, Residential Grade, 20A 125V, NEMA 5-20R, 2-Pole, 3-Wire, Self Grounding, Side Wired Only, Gray, 2 Packs
Regular price
$9.15
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
* List price is for 2 Packs
-
Mechanical shutter mechanism prevents access to contacts unless a two-pronged plug is inserted, helping ensure that foreign objects will be locked out
-
TR symbol on receptacle face assures they meet the NEC Section 406.11 code requirements
-
Ultrasonically welded for additional assembly security
-
Base and face made of high impact thermoplastic
-
Convenient break-off plaster ears for best flush alignment
-
Self-grounding clip staked on, will never fall off
-
Easily accessible break-off tabs when split feed wiring is required; allows easy two circuit conversion
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
| Device Type | Duplex Receptacle |
| Blade Type | Straight Blade |
| Grade | Residential Grade |
| Feature | Tamper-Resistant |
| Color | Gray |
| NEMA | 5-20R |
| Amperage | 20 A |
| Voltage | 125 VAC |
| Grounding | Self-Grounding |
| Pole | 2 |
| Wire | 3 |
| Body Material | Thermoplastic Nylon |
| Termination | Side Wired |
| Certifications | UL, CSA, NOM |
| Warranty | 2-Year Limited |
