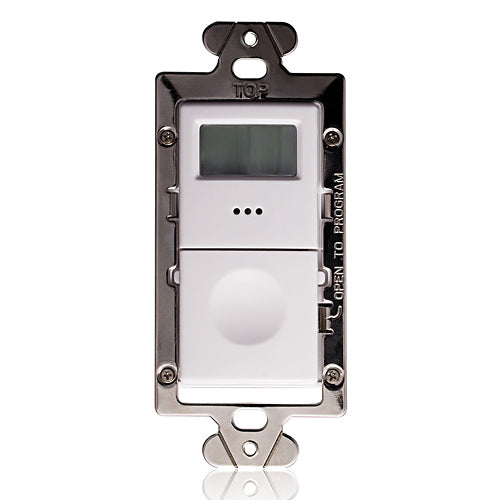

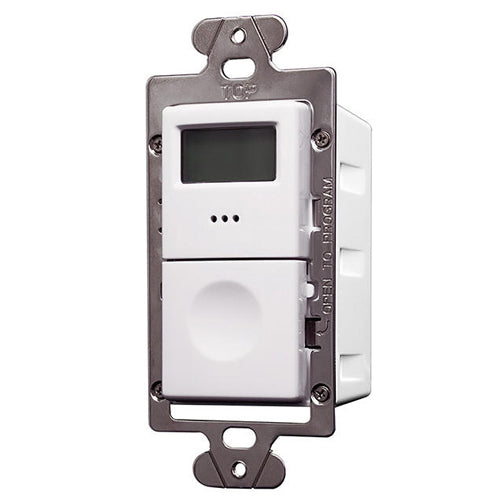

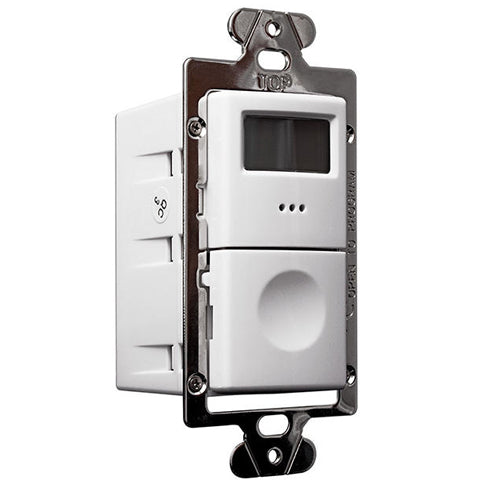

Leviton TS300-DW, Programmable Indoor Digital Timer, Wallplate Included, 120/277 VAC, 50/60Hz, White
Regular price
$139.55
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Digital Programmable Wallbox Timer, 2 hour & 4 hour presets, Control Incandescent and fluorescent lighting and motor loads, visual and audible turnoff warning, 3 Way and Multiple Way Switching, no Neutral Required, Dip Switch feature control, 120/277VAC, 50/60Hz.
- Zero arc point switching
- Wallplate locks access to dip switches for tamper resistance
- Backlit LED
- Optional audible blink warning
- No minimum load requirement
- Adjustable time delay and sensitivity
| Product Type | Programmable Timer |
| Wallplate | Included |
| Color | White |
| Frequency | 50/60Hz |
| Voltage |
120/277 VAC |
| Load Rating |
120VAC: 15A Resistive - 10A Ballast - 1200W LED lamp driver - 8A Tungsten - 1/4 HP Motor - 360VA Pilot duty 277VAC: 15A Resistive - 10A Ballast |
| Grade | Commercial |
| Switch Type | 3-Way, Multi-Way |
| Mounting Type | Wall Switch |
| Size | Height 4.2'' (106.68mm), Width 1.8'' (45.72mm), Depth 1.65'' (41.91mm) |
| Neutral Wire Connection | Not Required |
| Relative | Humidity0% to 95% non-condensing |
| Application | Restrooms, Storage rooms, Supply closets, Janitorial spaces, Small office |
| Certifications | ASHRAE 90.1, IECC, UL, Title 24 |
| Warranty | 5-Year Limited |
