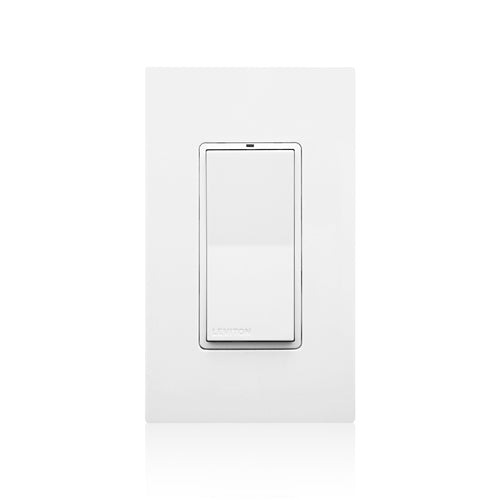

Leviton WSS20-N9N, LevNet RF Decora Rocker Wire-in Switch Receiver with Neutral, 10A Relay, White
Regular price
$144.86
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
LevNet RF wire in receiver switch Decora Rocker 10A relay Dip switches: AutoON/AutoOFF ManualON/AutoOFF Walk-through mode Repeater Disabled Time delay (2/10/20/30m) Range 30-150' 902MHz EnOcean protocol 120/208/220/230/240/277v 1P w/Neutral, Title 24 compliant, ASHRAE 90.1 compliant.
- Decora Design Aesthetics - intuiative rocker switch with return-to-center design
- No New Wiring Required — the LevNet RF Wall Switch Receivers simply replaces the existing light switch and communicates with self-powered switches and sensors via radio 902MHz frequency
- Vacancy Switching — provides pushbutton manual-ON/OFF light switching of each light load at any time
- Maximize Energy Savings — when paired with LevNet RF PIR Occupancy Sensor, the LevNet RF Wall Switch Receivers contain all sensor settings. Manual-ON/Auto-ON, auto-ON/auto-OFF, Walk through timer, auto time-out selections of 2 minutes for testing (10, 20 or 30 minutes). Allows flexibility and customized adjustments to maximize energy savings.
- Presentation/Viewing Mode — turn lights OFF and keep them OFF while room is occupied (i.e. for slide or film presentations), automatically returns to normal when manually switched back ON or room becomes vacant and time delay expires
- Walk-Thru Feature — maximizes energy savings by assuring a 2.5 minute time-out if motion is not present after 2.5 minutes in Auto-ON mode
- Standard Size for Seamless Installation — LevNet RF Wall Switch Receivers fit in a standard single gang wall box
- Required Wiring - neutral and non-neutral models available; non-neutral requires 25W minimum load
- Zero-Cross Relay: switches at the zero crossing point of the AC power curve to ensure maximum contractor life and compatibility with electronic ballasts
- Energy Savings and Efficiency — lowest power consumption of any RF device - less than 1/2W per 120V device and less than 2/3W per 277V device annually - approximately 70% savings over other RF devices
- Air Gap Switch — assures A/C power disconnects for safety on No-Neutral switch
- 10A load rating — for commercial lighting circuits
- EnOcean technology enabled — for LevNet RF communication from self-powered lighting controls
- H.I.S. (High Inrush Stability) — arcing design for use with all commercial ballasts
- Retrofit Energy Saving Bi-level Lighting with Occupancy Sensor Control —replace two light switches with LevNet RF Wall Switch Receivers — pair both with Self-Powered RF PIR Sensor, set the first LevNet RF Wall Switch to Auto-ON/Auto-OFF and the second to Manual-ON/Auto-OFF
