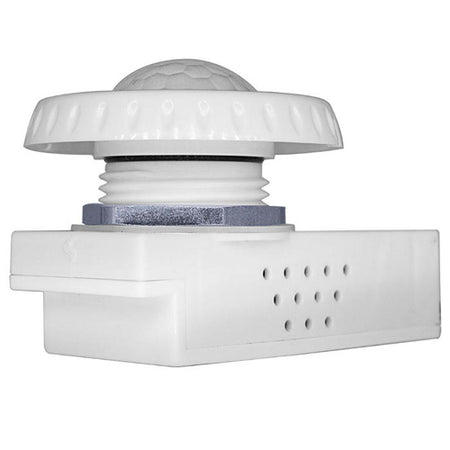

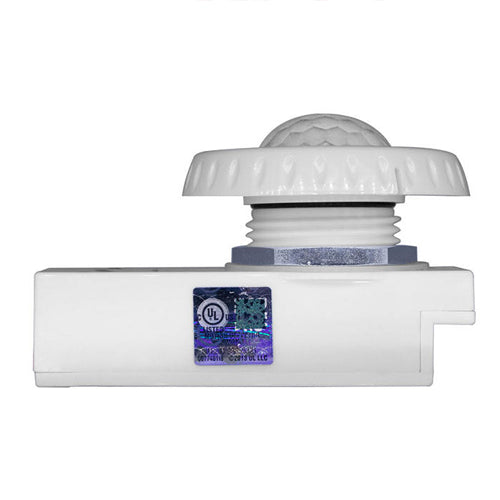

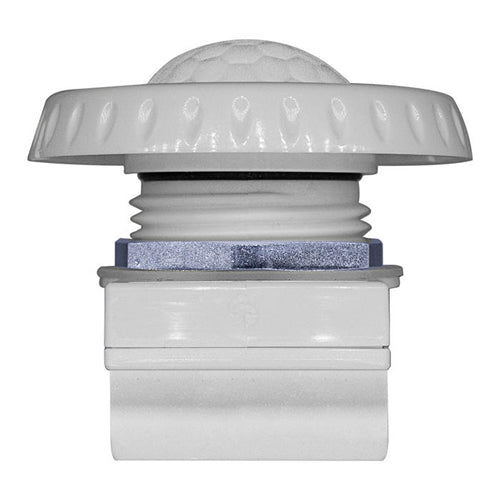

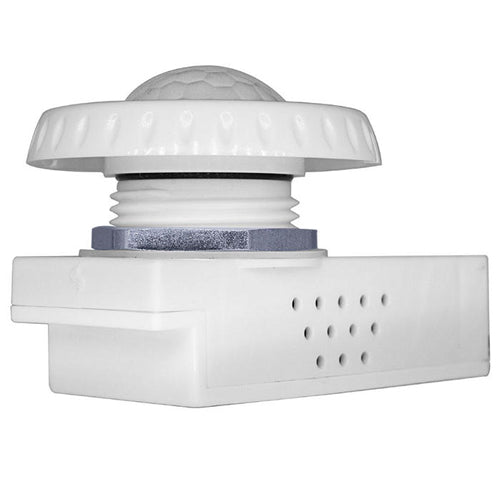

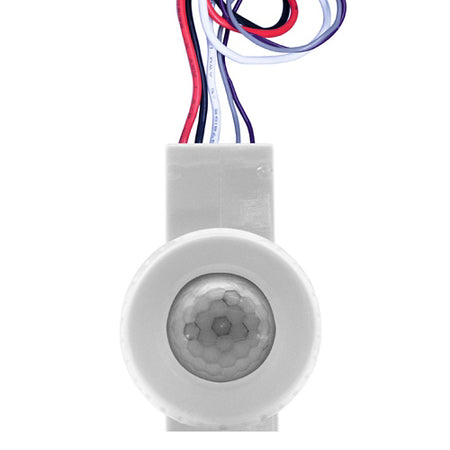

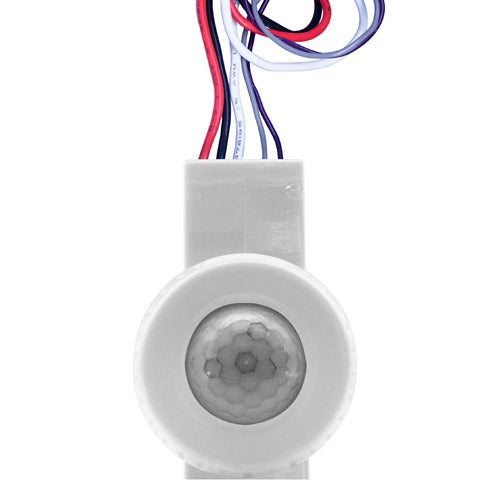

Leviton ZLS10-ILW, Solo Passive Infrared (PIR) Sensor, Fixture Integrated, 12-24 VDC, 0-10V Dimming, IP65 Rated
Regular price
$119.39
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Solo PIR Sensor, fixture integrated. 12-24VDC, 0-10V, max 25mA sinking current; mounting height: 40ft max; 30ft detection radius. Programmable via DIP switches or IR remote programmer (Cat. No. ZLS0R-RC1) to adjust sensitivity, time-out, photocell, and standby time.
| Product Type | Occupancy Sensor with Photocell |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Grade | Commercial |
| Color | White |
| Voltage | 12-24 VDC |
| Dimming Technology | 0-10V |
| Pattern | 360° |
| Mounting Type | Light Fixture Integrated |
| Sensor Mounting Configuration | Internal |
| IP Rating | IP65 Rated |
| Size | Width: 1.4'' (34.50 mm) Length: 2.0'' (50 mm) Depth: 1.4'' (35.80 mm) |
| Environment | Indoor/Outdoor |
| Relative Humidity | 95% non-condensing |
| Operating Temperature | -40°C to 75°C |
| Application | Luminaire level lighting control (LLLC), Occupancy and light level sensing, 0-10V dimming, Wet and cold locations, Warehouses, Industrial appilcations, Parking structures, Exterior lighting |
| Certifications | IECC, ASHRAE 90.1, Title 24 |
| Warranty | 5-Year Limited |
