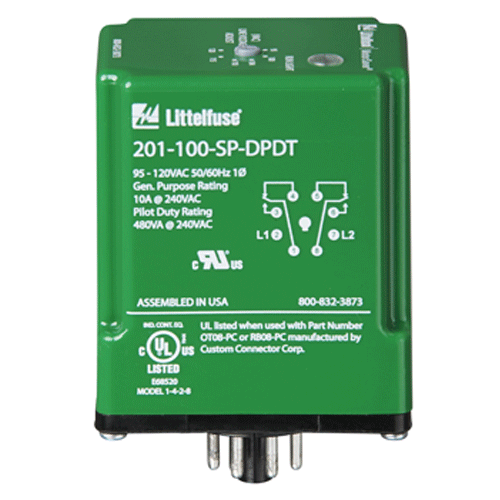

Littelfuse 201-100-SP, 201-SP Series, Single-phase voltage/phase monitor, Voltage Sensing AC 95 ~ 120VAC, SPDT (1 Form C)

In stock
SKU: 201-100-SP
$231.19
Rated voltage
Phase
Description
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The 201-SP series is an 8-pin octal-base, plug-in voltage monitor designed to protect single-phase motors regardless of size. The 201-100-SP is used on 95–120 V ac, 50/60 Hz motors to prevent damage caused by low voltage. The 201-200-SP is used on 190–240 V ac, 50/60 Hz motors. The 201-200-SP-T-9 is a pin-for-pin replacement for a Time Mark® #260 series voltage monitor. High voltage protection is included in the 201-200-SP-T-9. The unique microcontroller-based voltage and voltage-sensing circuit constantly monitors the voltage to detect harmful power line conditions. When a harmful condition is detected, the MotorSaver’s output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.

Input Characteristics
Line Voltage 201-100-SP: 95–120 V ac
201-200-SP:190–240 V ac
201-200-SP-T-9: 190–240 V ac
Frequency 50/60 Hz
Functional Characteristics
Low Voltage (% of setpoint) Trip        90 %
Reset     93 %
For 201-200-SP-T-9 only:
High Voltage (% of setpoint) Trip        110 %
Reset     107 %
Trip Delay Time High/Low Voltage Fault:  4 seconds
Restart Delay Time After a Fault         2 seconds
After a Complete Power Loss    2 seconds
Output Characteristics
Output Contact Rating (SPDT) Pilot Duty               480 VA @ 240 V ac
General Purpose    10 A @ 240 V ac
General Characteristics
Ambient Temperature Range Operating    -40° to 70°C (-40° to 158°F)
Storage        -40° to 80°C (-40° to 176°F)
Maximum Input Power 5 W
Transient Protection (Internal) 2500 V for 10 ms
Safety Marks UL (OT08PC octal socket required) UL 508 (File #E68520)
Dimensions H 44.45 mm (1.75”)
W 60.325 mm (2.375”)
D 104.775 mm (4.125”) (with socket)
Weight 0.8 lb. (12.8 oz., 362.87 g)
Mounting Method DIN rail or surface mount (plug in to OT08PC socket)
Socket Available Model OT08PC (UL Rating 600 V)
