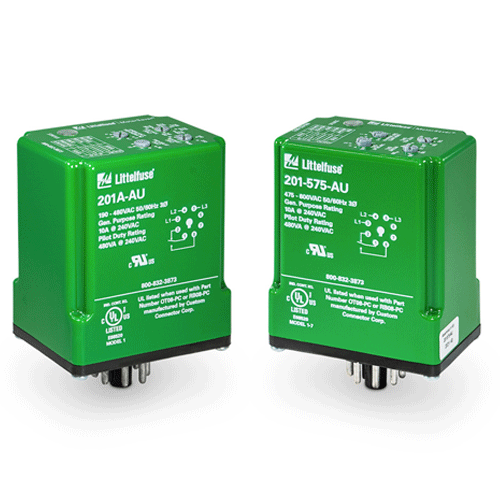

Littelfuse 201A-AU, 201A-AU Series, 3-Phase Voltage/Phase Monitor, Voltage Asymmetry, Voltage Sensing AC 190 ~ 480VAC, DIN-rail or surface mountable
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The 201A-AU series is a three-phase, auto-ranging, dual-range voltage monitor that protects 190–480 V ac, 50/60 Hz motors regardless of their size. This monitor provides a user-selectable nominal voltage setpoint and will automatically select between the 200 V and 400 V range. Additional adjustment knobs allow the user to set a 1–30 second trip delay, a manual restart or 1–500 second restart delay, and a 2–8% voltage unbalance trip point. It includes advanced, single LED diagnostics where color and light patterns distinguish between faults and normal conditions. This unique microcontrollerbased voltage and phase-sensing unit constantly monitors the three-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels for a specified restart delay time (or manual reset).
| Frequency | 50/60Hz |
| Functional Characteristics | |
| Low Voltage (% of setpoint) |
Trip 90%±1% Reset 93%±1% |
| High Voltage (% of setpoint) |
Trip 110% ±1% Reset 107% ±1% |
| Voltage Unbalance (NEMA) |
Trip 2–8% adjustable Reset Trip setting minus 1% (5–8%) Trip setting minus 0.5% (2–4%) |
| Trip Delay Time | High, Low and Unbalanced Voltage: 1–30 seconds adjustable |
| Single-Phasing Faults | 1 second fixed |
| Restart Delay Time |
After a Fault: Manual, 1–500 seconds adjustable After a Complete Power Loss: Manual, 1–500 seconds adjustable |
|
Output Contact Rating (1-Form C) |
Pilot Duty 480 VA @ 240 V ac General Purpose 10 A @ 240 V ac |
| General Characteristics | |
| Ambient Temperature Range |
Operating -40° to 70 °C (-40° to 158 °F) Storage -40° to 80 °C (-40° to 176 °F) |
| Trip & Reset Accuracy | ±1% |
| Maximum Input Power | 5 W |
| Relative Humidity | 10–95%, non-condensing per IEC 68-2-3 |
| Terminal Torque | 12 in.-lbs. (for OT08-PC socket) |
| Wire Size | 12–22 AWG solid or stranded |
| Transient Protection (Internal) | 2500 V for 10 ms |
| Standards Passed |
Electrostatic Discharge (ESD) IEC 61000-4-2, Level 3, 6 kV contact, 8 kV air |
| Dimensions |
H 44.5 mm (1.75”) W 60.3 mm (2.38'') D 104.8 mm (4.13”) |
| Enclosure | Polycarbonate |
| Weight | 0.7 lb. (11.2 oz., 317.51 g) |
| Mounting Method | DIN-rail or surface mount (plug in to OT08PC socket) |
| Socket Available | OT08PC (UL Rating 600 V) |
| Certification & Compliance |
UL UL508 (File #E68520) |
