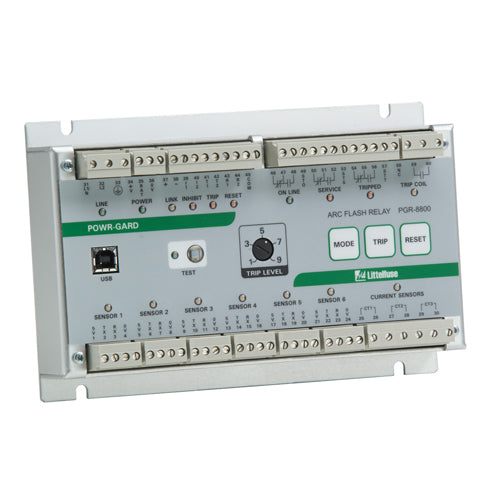

Littelfuse PGR-8800-00, PGR-8800 Series, Arc-Flash Monitoring Relay, 120-240VAC/VDC, 12-48VDC
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The PGR-8800 series arc-flash relay is a microprocessor-based protection relay that limits arc-flash damage by using light sensors to rapidly detect an arc and then trip a circuit breaker. Phase-current-transformer inputs are provided for current-constrained, arc-flash protection and, when so equipped, a programmable definite-time overcurrent function can be enabled. An optical sensor on the PGR-8800 and an adjustable trip-level reduce the chance of nuisance tripping by setting a threshold for ambient light. The PGR-8800 accepts PGA-LS10 point sensors and PGA-LS20/PGA-LS30 fiber-optic sensors, which are designed to collect light over a wide angle and with high sensitivity. Sensors, inputs, and connections are monitored to ensure fail-safe operation. A secondary solid-state trip circuit provides a redundant trip path. A USB port is used for configuration and access to event logs and graphs. For fast fault location, front-panel and sensor LEDs indicate sensor health and which sensor(s) detected an arc fault. A maximum of four PGR-8800 units can be linked into one system.
Sensor Placement
The PGR-8800 arc-flash relay and sensors are easily installed in retrofit projects and new switchgear with little or no re-configuration. More complex systems with multiple power sources are configured using the relay’s built-in USB interface software. Generally, it is recommended to mount one or two sensors per cubicle to cover all horizontal and vertical bus bars, breaker compartments, drawers, and anywhere that there is a risk for an arc fault. Threading a fiber-optic sensor through the cabinets and in areas where point-sensor coverage is uncertain results in complete coverage and an added level of redundancy. Even if policy is to only work on de-energized systems, all maintenance areas should be monitored to prevent potential damage and additional cost.
Specifications
IEEE Device Numbers | Overcurrent (50), Arc Flash (AFD) |
Input Voltage | 100–240 V ac, 14–48 V dc, and 110–250 V dc |
Dimensions |
H 130 mm (5.1”) W 200 mm (7.9”) D 54 mm (2.1”) |
Optical Trip Settings | 9–25 klux, 800 μs-20 s |
Current Trip Setting (A) | Programmable |
Indication Contact Mode | Fail-safe |
Trip Coil Voltage(1) | 24–300 V dc, 24–300 V ac |
Trip Coil Contact Mode | Selectable fail-safe or non-fail-safe |
Redundant Trip Circuit | Standard feature |
Input Monitoring | Standard feature |
USB Interface | Standard feature |
Trip, Reset, Service Buttons | Standard feature |
Expandable System | Link up to 4 PGR-8800 units |
Warranty | 5 years |
Mounting | Surface, DIN (with D0050 adapter clips) |
Approvals | UL, CE, CSA, RCM, FCC, DNV type approval, ABS type approval |
Certification & Compliance |
cULus UL508 Industrial Control Equipment E348169 CE EMC standards: EN60255-26 CSA LR 62897 RCM Australia FCC ANSI/IEEE C37.90.1-2002 (Oscillatory and Fast Transient) |
