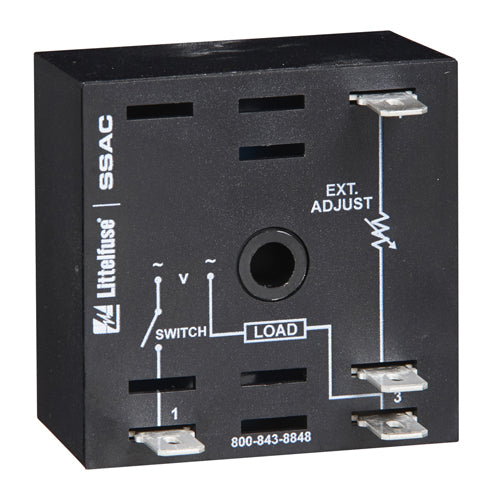

Littelfuse PHS120A20, PHS Series, 120VAC, 20A, Solid State SPST-NO (1 Form A) Module
Regular price
$102.92
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The PHS series relays are designed for changing lamp intensity, varying the speed of a fan, or controlling the temperature of a heater. The effective output voltage is adjusted with an accessory external potentiometer suitable for line voltage applications.
Operation
Upon application of input voltage, effective output voltage can be adjusted by changing the external resistance value. As the external resistance increases, the effective output voltage decreases, and the inverse is also true.
| Output | |
| Type | Variable voltage phase angle control |
| Rating |
Steady State (at 100 % On) Inrush* 1 A 10 A 6 A 60 A 10 A 100 A 20 A 200 A |
| Minimum Load | Current 100 mA |
| Voltage Drop | ≅ 2.0 V at rated current |
| Input | |
| Voltage | 120 or 230 V ac |
| Tolerance | ±20% |
| AC Line | Frequency 50/60 Hz |
| Protection | |
| Output Contact Rating-SPST | A300, 720VA @ 240 V ac (10 A max.) |
| General Characteristics | |
| Dielectric Breakdown | ≥ 2000 V RMS terminals to mounting surface |
| Insulation Resistance | ≥100MΩ |
| Mechanical | |
| Mounting * | Surface mount with one #10 (M5 x 0.8) screw |
| Dimensions |
H 50.8 mm (2”) W 50.8 mm (2”) D 38.4 mm (1.51”) |
| Termination | 0.25 in. (6.35 mm) male quick connect terminals |
| Environmental | |
| Operating/Storage Temperature | -20 °C to 60 °C / -40 °C to 85 °C |
| Humidity | 95% relative, non-condensing |
| Weight | 6, 10, & 20 A: ≅ 3.9 oz (111 g) |
| External Adjustment Potentiometer | |
| 120 V ac | 100KΩ rated at 1W |
| 230 V ac | 200KΩ rated at 2W; Must have insulation resistance suitable for line voltage applications. |
| Certification & Compliance | |
| UL Recognized | File E57310 UL508 |
