Littelfuse SE-CS30-8, SE-CS30 Series, Current Sensor, 200 mm (7.9”)

In stock
SKU: SE-CS30-8
$2,715.86
Window size, ID

Use this text to encourage communication or promote sharing on social networks.

You can also add links

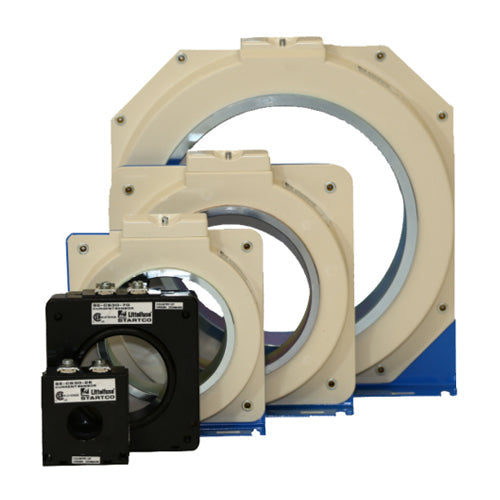

The SE-CS30 series is a sensitive nickel-core current transformer used with Littelfuse relays to detect low levels of earth-leakage current.

Turns Ratio 600:1
Current Rating 30:0.05 A
Accuracy 3% @ 0.06 VA
Frequency 50-400 Hz
Insulation Level 600 V
Operating Temperature -55 to 60ºC (-67 to 140ºF)
Application FPU-32, FPS, MPU-32, MPS, PGR-6100,
PGR-6101, SE-330, SE-701, SE-704
Certification CSA, UL, CE
Compliance RoHS, IEC 60044-1
