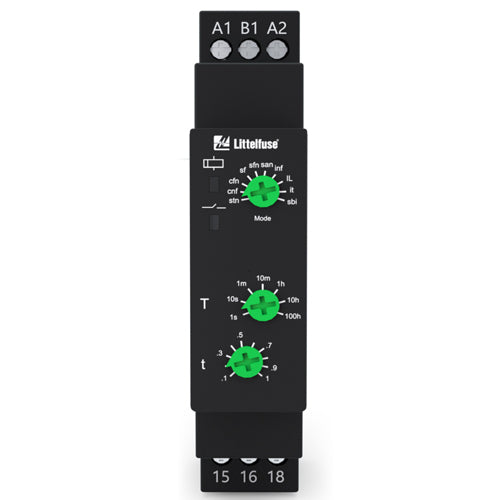

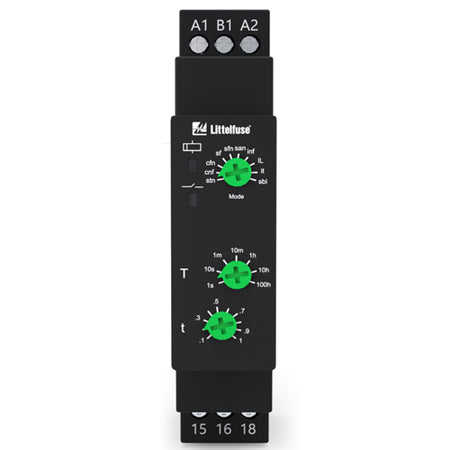

Littelfuse TMM175-11-0, Multifunction Timer, DIN Rail Mount, 0.1S-100Hrs, 5A One Changeover Contact Output, Operates on 12-240 VAC/DC
Regular price
$72.75
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The TMM175-11-0 is a Multifunction timer that is manufactured to a high degree of precision and accuracy. The time settings are stepless and can be set with the knob on the front face. The TMM175-11-0 has the following modes: Signal On Delay, Cyclic On / Off, Cyclic Off / On, Signal Off Delay, Signal Off / On, Accumulative Delay On Signal, Impulse On / Off, Leading Edge Impulse, Trailing Edge Impulse, and Leading Edge Bi-stable.
| Timer Description | Multifunction Timer |
| Derived Modes | ON delay, Interval |
| Supply Voltage | 12 - 240 Vac / Vdc |
| Supply Variation |
-15 % to +10 % of supply
|
| Frequency | 50 / 60 Hz ±3 Hz |
| Power Consumption (Max.) |
6 VA
|
| Timing Range | 0.1 s to 100 h |
| Reset Time | 200 ms (Max) |
| Setting Accuracy | ±5 % of Full scale |
| Repeat Accuracy | ±1 % |
| Relay Output | 1 C/O |
| Contact Rating |
8 A (Resistive) at 240 Vac, 5 A at 24 Vdc
|
| Operating Temperature |
-20 °C to +60 °C
|
| LED Indication |
Green LED → Power ON
Yellow LED → Relay ON |
| Enclosure |
Flame Retardant UL 94-V0
|
| Dimension (LxWxH) (in mm) |
89.8 x 17.5 x 65.9
|
| Mounting |
DIN-rail
|
| Degree of Protection |
IP20 for Terminals, IP40 for Housing and Front plate
|
| Certifications | CE, RoHS, IEC, cULus |
