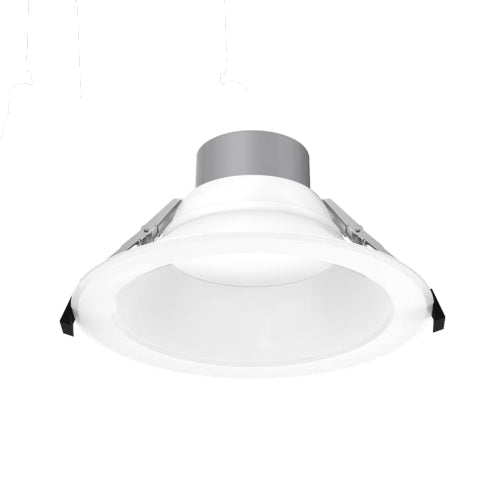

Lotus DL254-8-35W-M-A5C5-HO, 8" White Round Commercial 5 CCT & 5 Wattage Selectable, 16-35W, 120V-347VAC, 5CCT, 1670-4010 Lumens, 0-10V Dimming
Regular price
$83.55
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
All in one 0-10 V dimmable 8" LED downlight for retrofit & new construction.
Perfect for hospitality, healthcare, shopping mall & retail,office, exterior soffit, etc
Perfect for hospitality, healthcare, shopping mall & retail,office, exterior soffit, etc
Applications | Commercial Recessed Ceiling |
Power Levels (W) | CCT / W | 16 | 22 | 26 | 30 | 35 |
Light Output (lm) |
2700K | 1760 | 2410 | 2830 | 3180 | 3550 3000K | 1800 | 2480 | 2920 | 3290 | 3690 3500K | 1880 | 2610 | 3080 | 3480 | 3910 4000K |1930 | 2660 | 3130 | 3530 | 3970 5000K |1990 | 2710 | 3190 | 3570 | 4010 |
Color Temperature (K) | 5CCT user selectable: 2700-3000-3500-4000-5000 K |
Beam Angle | 90° |
CRI | 80 |
Input | 120V-347V AC 50/60 Hz |
Dimming | 0 - 10V |
Approved Location | Insulated Ceiling & Wet Locations |
Air Tight | Yes |
Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
Projected Life | 70% Light Output at 50,000 Hours |
Certification | cETLus |
Warranty | 5 Year |
