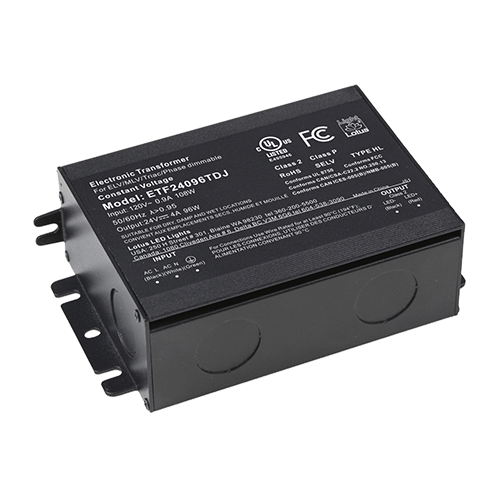

Lotus ETF24096TDJ, 24V DC 96W Dimmable Electronic Transformer in J-box
Regular price
$78.20
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
24V DC 96W Class 2 Mini Electronic Transformer in Junction Box
Constant Voltage Triac / ELV / MLV Dimmable
| Applications | LED Tape, 24 V DC Ceiling Fixtures |
| Power | 96 W |
| Input V / Hz | 120 V AC / 47-63 Hz |
| Output V / A | 24 V DC ± 1.5 V / 4 A |
| Type | Constant Voltage Electronic Transformer |
| Dimmability | Triac / ELV / MLV |
| Min / Max Load | 20% to 80% |
| THD | THD<20% @ 120 V max load |
| Efficiency | 88% @ 120V AC |
| Power Factor | 0.94 @ 120 V AC |
| THD | < 20% |
| Protection | Short circuit & Overload auto recovery |
| Approved Location | Dry, Damp & Wet Locations |
| Ambient Conditions | -40°F (-40°C) to +140°F (+60°C), 20-95% RH |
| Warranty | 5 Year |
| Certification | c UL us Listed, Class 2, Class P, Type HL |
