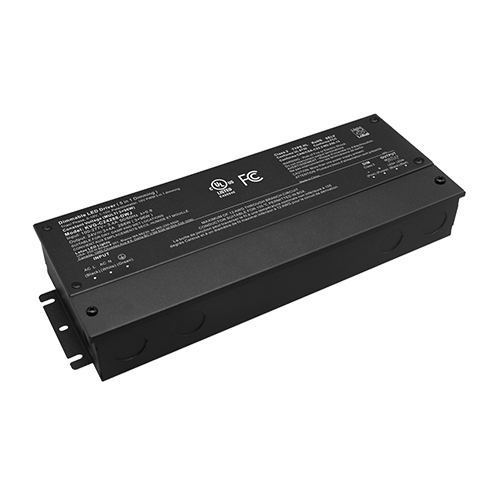

Lotus KVG-C24288-DWJ, 24V Constant Voltage 288W Driver 5-in-1 Dimmable
Regular price
$319.60
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
24V 288W class 2 power supply with built-in wiring
compartments for line and low voltage connections
5-in-1 forward and reverse phase dimming:
TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
| Applications | LED Tape, 24V Ceiling Fixtures |
| Power | 3 x 96 W |
| Input | 120V - 277V AC |
| Output V / A | 24V DC 3 x 4 A |
| Dimmability | TRIAC, 0-10V, 1-10V, Pot., 10V PWM |
| Approved Location | Dry, Damp & Wet Locations |
| Wiring Volume | 11 cu in per chamber |
| Ambient Conditions | -40°F (-40°C) to +140°F (+60°C) |
| Warranty | 5 Year |
| Certification | c UL us, FCC |
