Lotus LBL-5050-2835-72P-24V-10MM-RGBTW-SPI-IP65, RGBTW LED Strip, 50W, 24VDC, RGB + Tunable White, 2970/3762/4752 Lumens
Regular price
$134.30
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

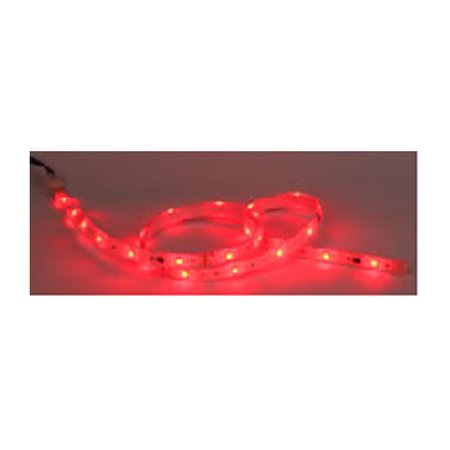

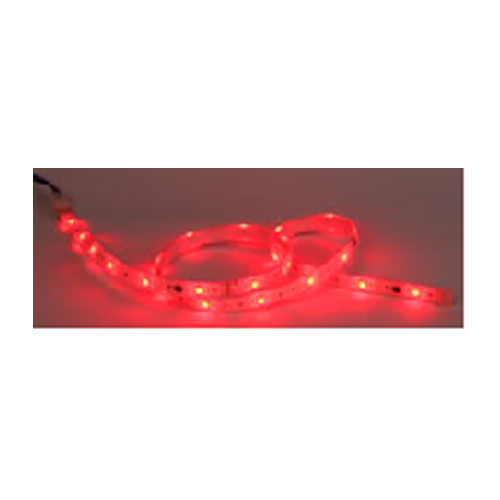

SMT type RGBTW LED flexible strip 24V DC for WET locations SPI controlled.
33 ft long (10m), total of 40 pixel groups.
Each pixel group has 6 LED clusters of 3 LEDs - RGB, Warm and Cool White.
Wires on both ends allows multiple strips to be connected to one controller, Up to 495 ft (150m) to one SPI controller ( max 600 pixels).
Power supply needed every 33ft (10m).
Note: SPI controlled strips are directional. The wires on the end cannot be used to start a new piece, they can only be used to pass the control signal to the next strip. If you cut a piece of the 33 ft strip and want to use it, you need to solder wires or use our tape to wire connector.
Maximum 128 SPI controllers per network.
33 ft long (10m), total of 40 pixel groups.
Each pixel group has 6 LED clusters of 3 LEDs - RGB, Warm and Cool White.
Wires on both ends allows multiple strips to be connected to one controller, Up to 495 ft (150m) to one SPI controller ( max 600 pixels).
Power supply needed every 33ft (10m).
Note: SPI controlled strips are directional. The wires on the end cannot be used to start a new piece, they can only be used to pass the control signal to the next strip. If you cut a piece of the 33 ft strip and want to use it, you need to solder wires or use our tape to wire connector.
Maximum 128 SPI controllers per network.
| Applications | Undercabinet, Cove, Valance, Decorative |
| Maximal Power | 1.5W/ft (5W/m) |
| Input | 24V DC Constant Voltage Power Supply |
| CCT | RGB + Tunable White |
| Light Output per 3.3 ft (1m) | 2700K - 90 lm, 6000K - 114 lm, RGB - 144 lm |
| Control Type | SPI (Serial Peripheral Interface) |
| Length | 33ft (10 m) |
| Maximum length per power supply | 33ft (10 m) |
| Maximum length per SPI controller | 495 ft (150m) / 600 pixels |
| Width | bare strip 3/8" (10 mm) | with silicone 1/2" (12 mm) |
| Beam Angle | 135° |
| IP Grade | IP 65 |
| Approved Location | Wet Location |
| Ambient Temperature | -13°F (-25°C) to +113°F (+45°C) |
| Cuttable Increment | 10" (25cm) |
| Minimum Bending Radius | 2" (50 mm) |
| LEDs sizes | RGB - 5050, Warm & Cool White - 2835 |
| Adhesive Tape Type | 3M 300SE |
| Projected Life | 70% Light Output at 20,000 Hours |
| Certification | cETLus |
| Warranty | 5 year indoor / 3 year outdoor |
