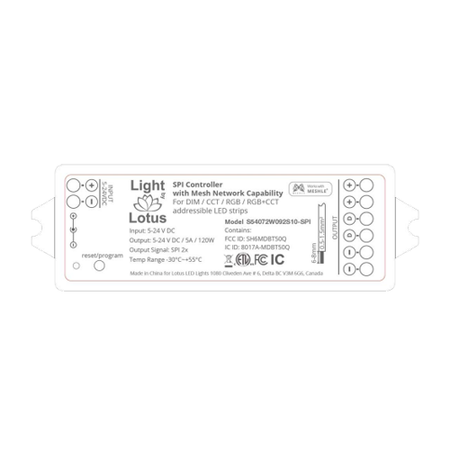

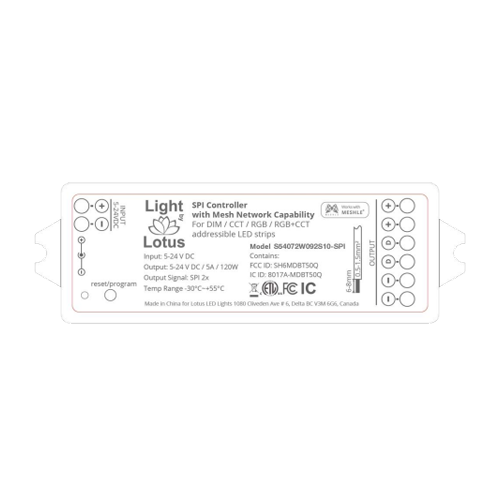

Lotus S54072W092S10-SPI, Multi-pixel LED Strip Controller with SPI signal output Bluetooth Mesh or Meshle App control
Regular price
$151.30
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Multi-pixel LED strip controller with SPI signal output
MESHLE app cloud control, support to set colors, scenes, animations, timers, rules, device configuration, power up state, PWM frequency, etc.
Offers group control capability: can be operated individually or as part of a group
Compatible with MESHLE: Enables wireless connection with other devices in a Bluetooth Mesh Network and control via the MESHLE app
| Input Voltage | 5 - 24V DC |
| Output Voltage | 5 - 24V DC |
| Max Output Current | 5A |
| Max Output Power | 120W |
| Output Signal | SPI x 2 |
| Input Signal | Meshle app + Bluetooth mesh |
| Min supported version | Bluetooth Low Energy 4.1 |
| WiFi supported | 2.4 GHz |
| Max pixel dots | 600 |
| Operating Temperature | -22°F (-30°C) to +122°F (+55°C) |
| Case Temperature | max 149°F (65°C) |
| IP Rating | IP20 |
| Certification | c ETL us, FCC |
| Warranty | 5 Year |
