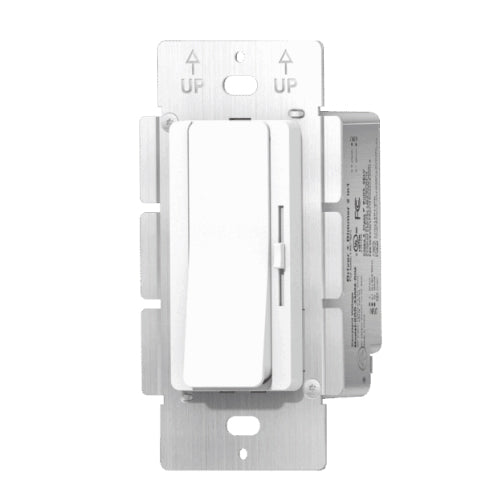

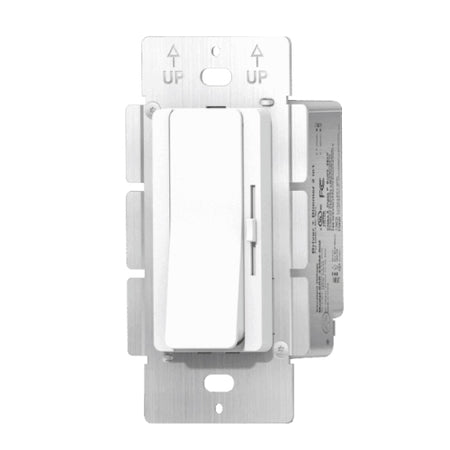

Lotus SDD-24060-DIM, 2 in 1 Driver + Dimmer for Single CCT LED 24V 60W
Regular price
$134.30
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Driver + Dimmer 2 in 1 Power
Class 2 power supply for electrical box installation
| Applications | 24V DC single CCT & DTW LED installations |
| Power | 60 W |
| Input | 120V AC 60 Hz |
| Output V / A | 24V DC / 2.5A |
| Voltage Adjustment | 24 to 26 V +/- 0.5V |
| Type | Constant Voltage PWM output |
| Dimming Range | 0.3% - 100% |
| Min / Max Load | no minimum / 60 W |
| THD | < 10% at full load |
| Power Factor | > 0.99 at full load |
| Inrush Current | 50A, 150us @ 50% |
| Efficiency | 91% at full load |
| Net Weight | 0.55 lbs / 0.25 kg |
| Approved Location | Dry & Damp Locations |
| Ambient Conditions | -40°F (-40°C) to +140°F (+60°C) |
| Warranty | 5 Year |
| Certification | c UL us, FCC |
