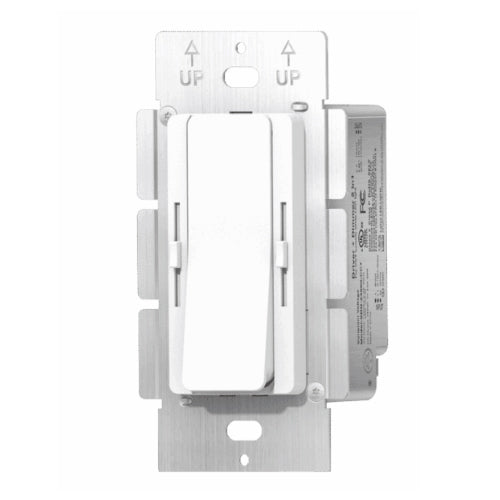

Lotus SDD-24096-CCT, 3-in-1 Driver + Dimmer + Tunable White Controller 24V 96W
Regular price
$185.30
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Driver + Dimmer + Manual CCT Controller 3 in 1
Class 2 power supply for electrical box installation
| Applications | 24V DC Tunable White LED installations |
| Power | 96 W |
| Input | 120V AC 60 Hz |
| Output V / A | 24V DC / 4A |
| Voltage Adjustment | 24 to 26 V +/- 0.5V |
| Type | Constant Voltage PWM output |
| Dimming Range | 0.3% - 100% |
| Min / Max Load | no minimum / 96 W |
| THD | < 10% at full load |
| Power Factor | > 0.99 at full load |
| Inrush Current | 50A, 150us @ 50% |
| Efficiency | 91% at full load |
| Net Weight | 0.55 lbs / 0.25 kg |
| Approved Location | Dry & Damp Locations |
| Ambient Conditions | -40°F (-40°C) to +140°F (+60°C) |
| Warranty | 5 Year |
| Certification | c UL us, FCC |
