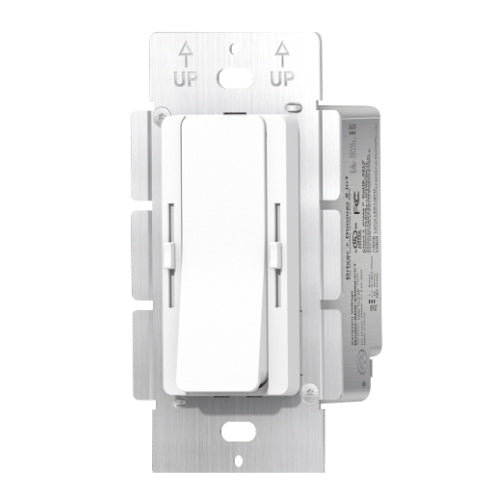

Lotus SDD-24096P-WLCCT-TWB, 4-in-1 Driver + Dimmer + Tunable White Controller + Smart 24V 96W
Regular price
$214.20
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Driver + Dimmer + Manual CCT Controller + Smart 4 in 1
Class 2 power supply for electrical box installation
| Applications | 24V DC Tunable White LED installations with app control |
| Power | 96 W |
| Input | 120V AC 60 Hz |
| Output V / A | 24V DC / 4A |
| Voltage Adjustment | 24 to 26 V +/- 0.5V |
| Type | Constant Voltage PWM output |
| Dimming Range | 0.3% - 100% |
| Min / Max Load | no minimum / 96 W |
| Smart Dimming | Smart Life app (Tuya) or Bluetooth control |
| THD | < 10% at full load |
| Power Factor | > 0.99 at full load |
| Inrush Current | 50A, 150us @ 50% |
| Efficiency | 91% at full load |
| Net Weight | 0.55 lbs / 0.25 kg |
| Approved Location | Dry & Damp Locations |
| Ambient Conditions | -40°F (-40°C) to +140°F (+60°C) |
| Warranty | 5 Year |
| Certification | c UL us, FCC |
