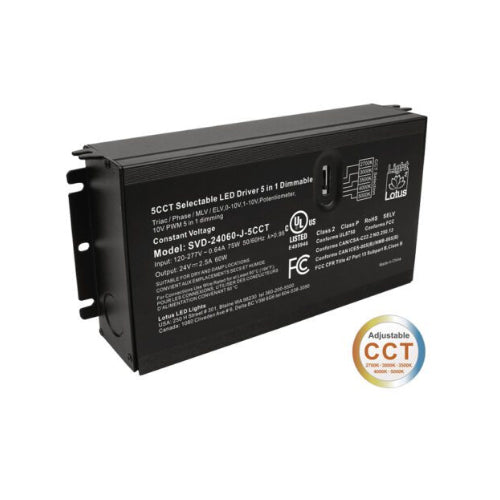

Lotus SVD-24060-J-5CCT, 5CCT Selectable 24V 60W 5-in-1 Dimmable cULus Driver with Built-in Wiring Chambers 120-277V Wet Class 2
Regular price
$134.30
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
5CCT Selectable 24V 60W class 2 power supply with built-in wiring
compartments for line and low voltage connections
5-in-1 forward and reverse phase dimming:
TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
| Applications | Tunable White LED Tape |
| CCT options | 2700-3000-3500-4000-5000K |
| Power | 60 W |
| Input | 120V - 277V AC |
| Output V / A | 24V DC / 2.5A |
| Type | Constant Voltage Electronic LED Driver |
| Dimmability | TRIAC, 0-10V, 1-10V, Pot., 10V PWM |
| Min / Max Load | 6W / 60W |
| THD | < 10% at full load |
| Power Factor | > 0.95 at full load |
| Standby power | < 0.5W |
| Inrush Current | 30.4A, 50% 116us @120V / 72.8A, 50%, 152us @277V |
| Efficiency | 86% @120V / 87% @ 277V at full load |
| Approved Location | Dry, Damp & Wet Locations |
| Wiring Volume | 5 cu in per chamber |
| Ambient Conditions | -40°F (-40°C) to +140°F (+60°C) |
| Warranty | 5 Year |
| Certification | c UL us, FCC |
