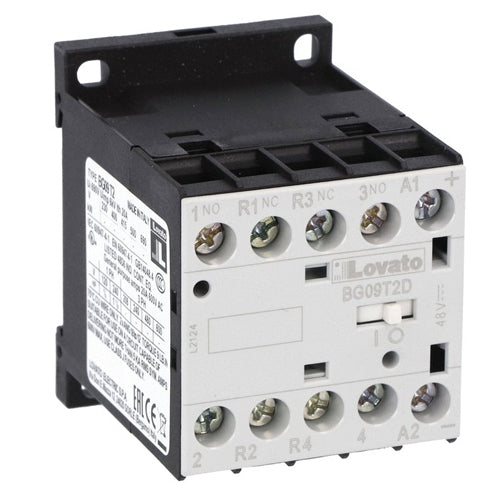

Lovato 11BG09T2D110, Four-Pole BG Series Mini Contactor, DC Coil, 110VDC, 2NO and 2NC
Regular price
$165.58
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Contactors |
| Number of Poles | 4 |
| Type of Coil | DC coil |
| Rated Coil Voltage [V] | 110 |
| IEC Operating Current Ith (AC1) [A] | 20 |
| IEC Operating Current and power Ie (AC3) 400V [A/Kw] | 9A / 4.0Kw |
| UL/CSA Horsepower Ratings 480V [HP] | 5 |
| Type of Built-in Auxiliary Contacts | 2NO+2NC |
| Type of Mounting | Screw / DIN rail 35mm |
| Operating Temperature | -50°C - +70°C |
| HS Code | 85365080 |
| Certifications | CCC, EAC, cULus |
| Compliance | IEC/EN 60947-1 IEC/EN 60947-4-1 UL 60947-1 UL 60947-4-1 CSA C22.2 n° 60947-1 CSA C22.2 n° 60947-4-1 |
