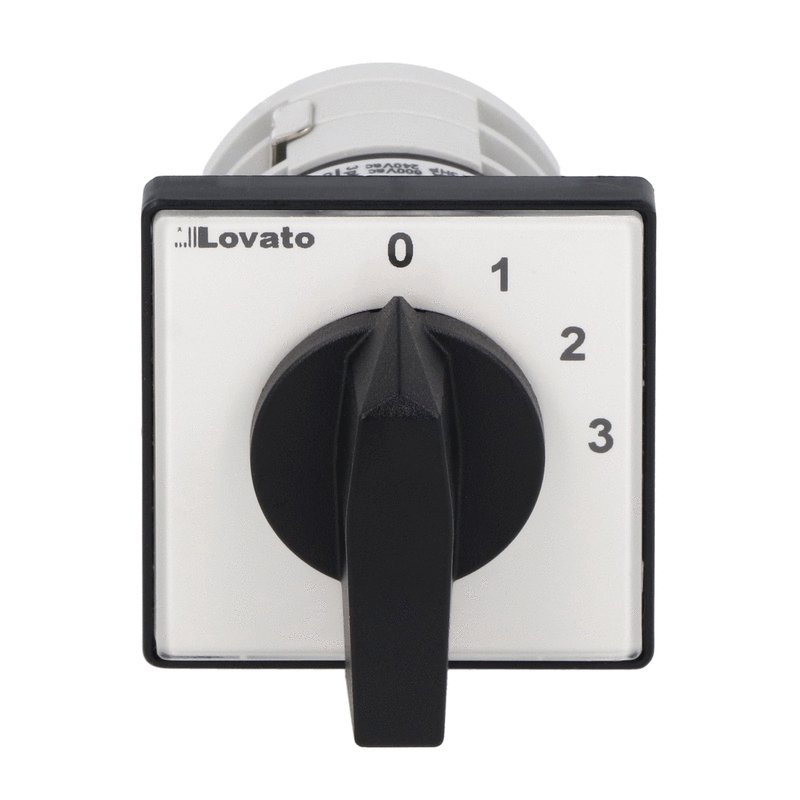

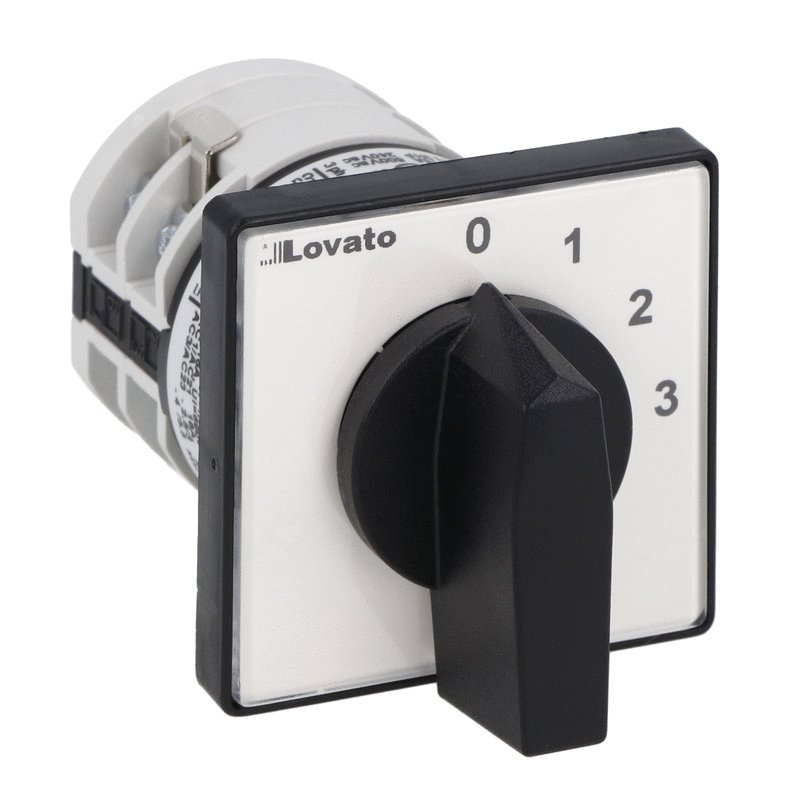

Home » Lovato 7GN12108U, Rotary Cam Switch 7GN Series, Multi-Step 0-1-2-3, 1 Pole 16A, For Front Mounting with Black Handle, Front Plate 48X48mm
Lovato

Lovato 7GN12108U, Rotary Cam Switch 7GN Series, Multi-Step 0-1-2-3, 1 Pole 16A, For Front Mounting with Black Handle, Front Plate 48X48mm

In stock
SKU: 7GN12108U
$96.88
Ampere rating
Pole
Rated voltage
 More payment options

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Multi-Step
Switching Diagram 108 - Multi-step 0-1-2-3 1 pole
IEC Conventional Free Air Thermal Current Ith [A] 16
Mounting Form U - Front mounting with black handle
Series 7GN - round-shaped contact block
Rated Operational Voltage [V] 480
Operating Temperature -25°C - +55°C
Frontal IP Degree IP40
HS Code 85365080
Certifications UL, cCSAus, EAC
Conformity IEC/EN/BS 60947-1
IEC/EN/BS 60947-3
IEC/EN/BS 60947-5-1
UL60947-4-1
CSA C22.2 n° 14
