Home » Lovato 7GN1226U, Rotary Cam Switch 7GN Series, 3-Phase Motor Reversing Switch with Spring Return, 16A, For Front Mounting with Black Handle, Front Plate 48x48mm
Lovato

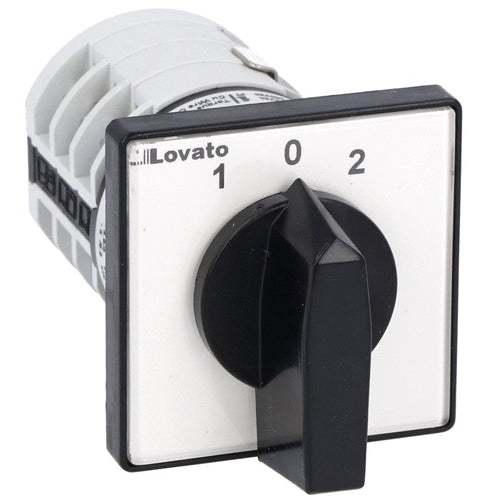

Lovato 7GN1226U, Rotary Cam Switch 7GN Series, 3-Phase Motor Reversing Switch with Spring Return, 16A, For Front Mounting with Black Handle, Front Plate 48x48mm

In stock
SKU: 7GN1226U
$108.46
Ampere rating
Phase
Rated voltage

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Motor starting switches
Switching Diagram 26 - 3-phase motor reversing switch with spring return
IEC Conventional Free Air Thermal Current Ith [A] 16
Mounting Form U - Front mounting with black handle
Series 7GN - round-shaped contact block
Rated Operational Voltage [V] 480
Operating Temperature -25°C - +55°C
Frontal IP Degree IP40
HS Code 85365080
Certifications cCSAus, EAC, UL
Conformity IEC/EN/BS 60947-1
IEC/EN/BS 60947-3
IEC/EN/BS 60947-5-1
UL60947-4-1
CSA C22.2 n° 14
