Home » Lovato 7GN1267U, Rotary Cam Switch 7GN Series, Voltmeter Switch for Phase-Phase Voltages 16A, For Front Mounting with Black Handle, Front Plate 48x48mm
Lovato

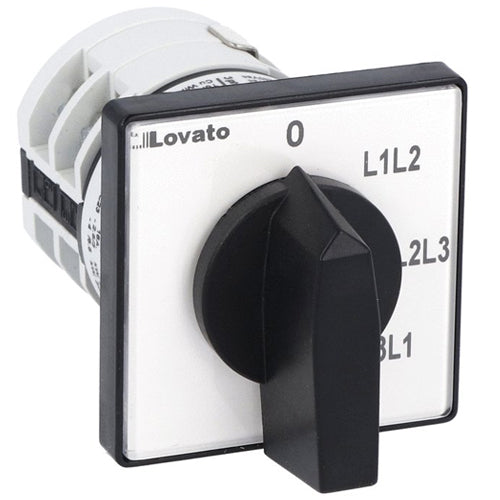

Lovato 7GN1267U, Rotary Cam Switch 7GN Series, Voltmeter Switch for Phase-Phase Voltages 16A, For Front Mounting with Black Handle, Front Plate 48x48mm

In stock
SKU: 7GN1267U
$95.95
Ampere rating
Rated voltage

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Voltmeters and ammeters
Switching Diagram 67 - Voltmeter switch for phase-phase voltages
IEC Conventional Free Air Thermal Current Ith [A] 16
Mounting Form U - Front mounting with black handle
Series 7GN - round-shaped contact block
Rated Operational Voltage [V] 480
Operating Temperature -25°C - +55°C
Frontal IP Degree IP40
HS Code 85365080
Certifications UL, EAC, cCSAus
Conformity IEC/EN/BS 60947-1
IEC/EN/BS 60947-3
IEC/EN/BS 60947-5-1
UL60947-4-1
CSA C22.2 n° 14
