Home » Lovato 7GN2092U11, Rotary Cam Switch 7GN Series, ON-OFF Switch, 4 Poles 20A, For Front Mounting with Black Handle without Front Plate for Hole Ø22mm Fixing
Lovato

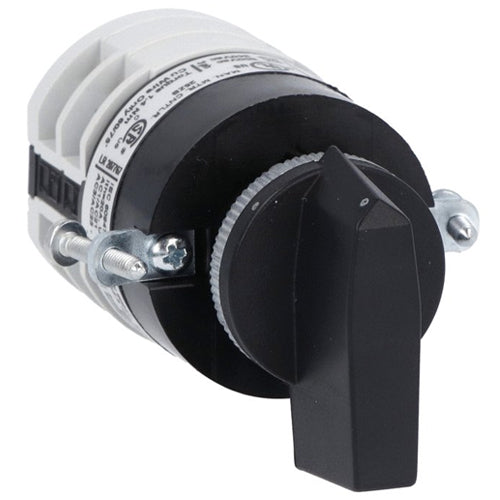

Lovato 7GN2092U11, Rotary Cam Switch 7GN Series, ON-OFF Switch, 4 Poles 20A, For Front Mounting with Black Handle without Front Plate for Hole Ø22mm Fixing

In stock
SKU: 7GN2092U11
$198.18
Ampere rating
Pole
Rated voltage

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product ON/OFF switches
Switching Diagram 92 - ON/OFF switch 4 poles
IEC Conventional Free Air Thermal Current Ith [A] 20
Mounting Form U11 - Front mounting with black handle without front plate for hole diam. 22mm fixing
Series 7GN - round-shaped contact block
Rated Operational Voltage [V] 480
Operating Temperature -25°C - +55°C
Frontal IP Degree IP40
HS Code 85365080
Certifications EAC, cCSAus, UL
Conformity IEC/EN/BS 60947-1
IEC/EN/BS 60947-3
IEC/EN/BS 60947-5-1
UL60947-4-1
CSA C22.2 n° 14
