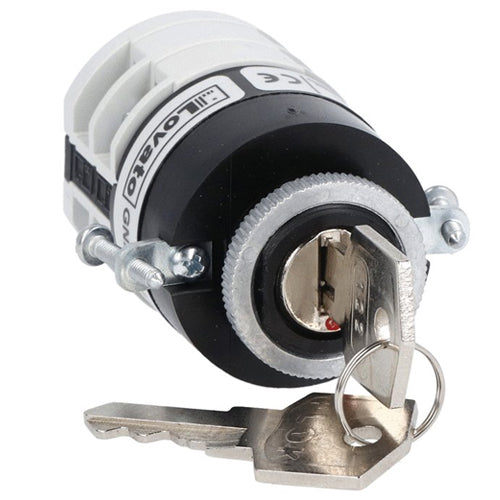

Lovato 7GN2092U12, Rotary Cam Switch 7GN Series, ON-OFF Switch, 4 Poles 20A, For Front Mounting without Front Plate with Key Operation for Hole Ø22mm Fixing
Regular price
$222.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | ON/OFF switches |
| Switching Diagram | 92 - ON/OFF switch 4 poles |
| IEC Conventional Free Air Thermal Current Ith [A] | 20 |
| Mounting Form | U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing |
| Series | 7GN - round-shaped contact block |
| Rated Operational Voltage [V] | 480 |
| Operating Temperature | -25°C - +55°C |
| Frontal IP Degree | IP40 |
| HS Code | 85365080 |
| Certifications | EAC, cCSAus, UL |
| Conformity | IEC/EN/BS 60947-1 IEC/EN/BS 60947-3 IEC/EN/BS 60947-5-1 UL60947-4-1 CSA C22.2 n° 14 |
