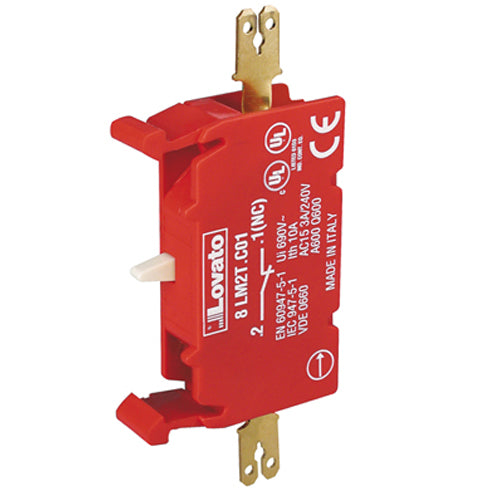

Lovato 8LM2TCF01, Contact Element, Ø22mm 8LM Series Metal, Normally Closed, Faston Termination
Regular price
$14.80
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Rated Insulation Voltage Ui IEC/EN | 690V |
| IEC Conventional Free Air Thermal Current Ith | 10A |
| Conductivity | 5V 10mA |
| Terminals | Faston 1-6.35mm/0.25'' or 2-2.8mm/0.11'' |
| Operating Temperature | -25°C - +60°C |
| HS Code | 85365080 |
| Certifications | cULus, RINA, LROS, EAC, CCC, UL |
| Conformity |
IEC/EN 60947-1 IEC/EN 60947-5-1 UL508 CSA C22.2 n° 14 |
