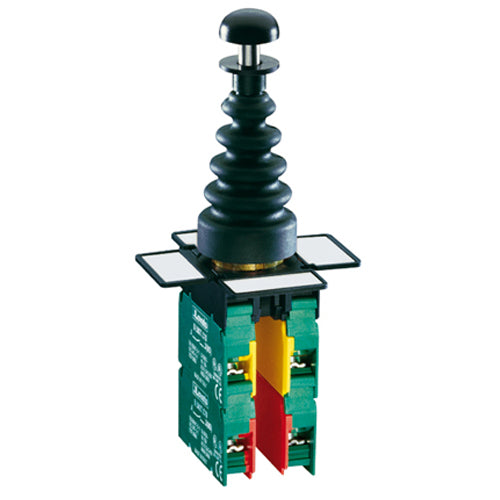

Lovato 8LM2TJ411, Joystick with Mechanical Interlock, Ø22mm 8LM Series Metal, Complete with Auxiliary Contact, Stable, 4NO Auxiliary Contacts
Regular price
$136.10
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Positions | Joystick |
| Type of Actuator | 4 stable |
| Material | Aluminium and zinc alloy |
| IEC Degree of Protection | IP65 |
| Rated Insulation Voltage Ui IEC/EN | 690V |
| IEC Conventional Free Air Thermal Current Ith | 10A |
| Terminals Screw | Clamp screw with washer |
| Mounting Adapter | Included with Contacts |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Operating Temperature | -25°C - +60°C |
| HS Code | 85365080 |
| Certifications | cULus, EAC, CCC |
| Conformity |
IEC/EN 60947-1 IEC/EN 60947-5-1 UL508 CSA C22.2 n° 14 |
