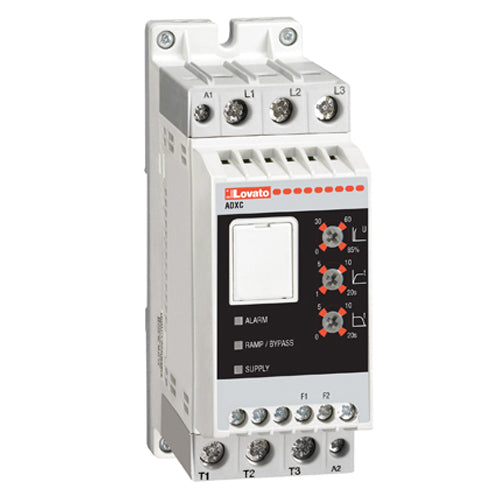

Lovato ADXC025600R2, Soft Starter with Integrated By-Pass, ADXC... Type, Three-Phase, Motor Control, 220…600VAC, 25A
Regular price
$762.65
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Soft Starter |
| Type of System | Three phase |
| Rated Supply Voltage | 220…600VAC |
| Auxiliary Supply Voltage (Us) | 100…240VAC |
| Rated Starter Current Ie [A] | 25 |
| Rated Motor Power 230VAC [kW] | 5.5 |
| Rated Motor Power 400VAC [kW] | 11 |
| Rated Motor Power 500VAC [kW] | 15 |
| Built-In Bypass | Yes |
| Functions | Basic parameters only |
| Mounting | Screw-fixing or 35mm DIN rail |
| IP Degree of Protection | IP20 |
| Dimensions (W x H x D) | 45 x 125 x 109.8 mm |
| Operating Temperature | -20°C - +60°C (with derating >40°C) |
| HS Code |
85044090 |
| Certifications | cULus, EAC, RCM |
| Conformity |
IEC/EN 60947-1 IEC/EN 60947-4-2 UL508 CSA C22.2 n° 14 |
