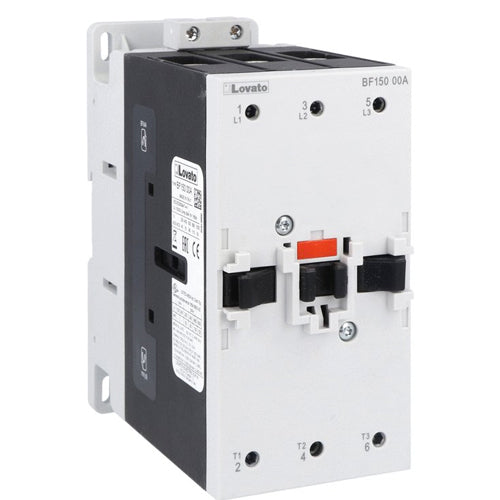

Lovato BF15000A12060, BF Series Three-Pole Contactor, IEC Operating Current Ie (AC3) = 150A, AC Coil 60Hz, 120VAC
Regular price
$1,098.74
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Contactors |
| Number of Poles | 3 |
| Type of Coil | AC coil 60Hz |
| Rated Coil Voltage [V] | 120 |
| IEC Operating Current Ith (AC1) [A] | 165 |
| IEC Operating Current and Power Ie (AC3) 400V [A/Kw] | 150A / 75Kw |
| UL/CSA Horsepower Ratings 480V [HP] | 100 |
| Rated Insulation Voltage Ui IEC/EN [V] | 1000 |
| Type of Mounting | Screw / DIN rail 35mm |
| Power Terminal Protection According to IEC/EN 60529 | IP20 Front |
| Operating Temperature | -50°C - +70°C |
| HS Code | 85365080 |
| Certifications | CCC, cULus |
| Compliance |
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN/BS 60947-1
IEC/EN/BS 60947-4-1
UL 60947-1
UL 60947-4-1
|
