Home » Lovato BF150T4E024, BF Series Four-Pole Contactor, IEC Operating Current Ith (AC1) = 165A, AC/DC Coil, 20...48VAC/DC, 4NO
Lovato

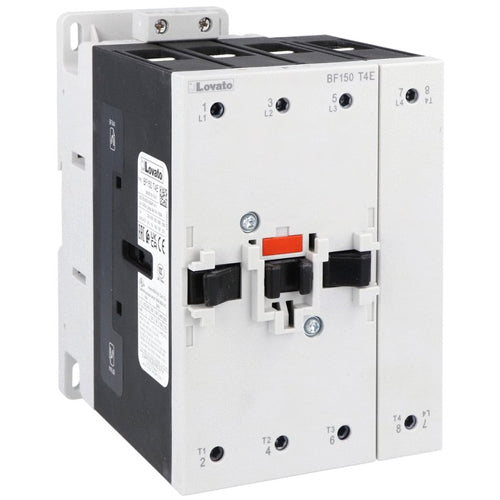

Lovato BF150T4E024, BF Series Four-Pole Contactor, IEC Operating Current Ith (AC1) = 165A, AC/DC Coil, 20...48VAC/DC, 4NO

In stock
SKU: BF150T4E024
$1,629.57
Pole
Rated voltage
Contact

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Contactors
Number of Poles 4
Type of Coil AC/DC coil
Rated Coil Voltage [V] 20...48
IEC Operating Current Ith (AC1) [A] 165
IEC Operating Current and Power Ie (AC3) 400V [A/Kw] 150A / 75Kw
UL/CSA Horsepower Ratings 480V [HP] 100
Type of Built-in Auxiliary Contacts 4NO
Type of Mounting Screw / DIN rail 35mm
Operating Temperature -40°C - +70°C
HS Code 85365080
Certifications CCC, EAC, cULus
Compliance
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN/BS 60947-1
IEC/EN/BS 60947-4-1
UL 60947-1
UL 60947-4-1
