Home » Lovato BF26T2L024, BF Series Four-Pole Contactor, IEC Operating Current Ith (AC1) = 45A, DC Coil Low Consumption, 24VDC, 2NO and 2NC
Lovato

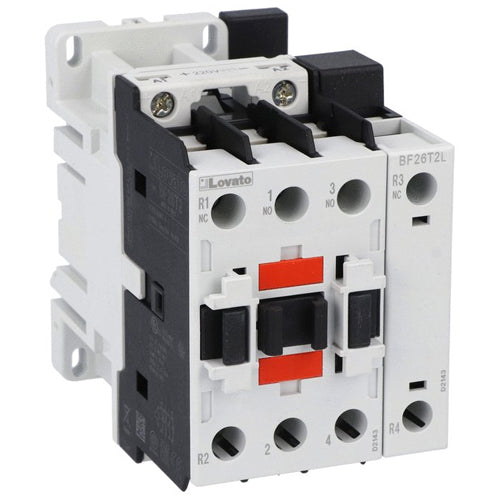

Lovato BF26T2L024, BF Series Four-Pole Contactor, IEC Operating Current Ith (AC1) = 45A, DC Coil Low Consumption, 24VDC, 2NO and 2NC

In stock
SKU: BF26T2L024
$444.08
Pole
Rated voltage
Contact

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Contactors
Number of Poles 4
Type of Coil DC coil low consumption
Rated Coil Voltage [V] 24
IEC Operating Current Ith (AC1) [A] 45
IEC Operating Current Ie (AC3) [A] 26
UL/CSA Horsepower Ratings 480V [HP] 15
Rated Insulation Voltage Ui IEC/EN [V] 690
Type of Built-in Auxiliary Contacts 2NO+2NC
Type of Mounting Screw / DIN rail 35mm
Operating Temperature -50°C - +70°C
HS Code 85365080
Certifications CCC, EAC, cULus
Compliance
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN/BS 60947-1
IEC/EN/BS 60947-4-1
UL 60947-1
UL 60947-4-1
