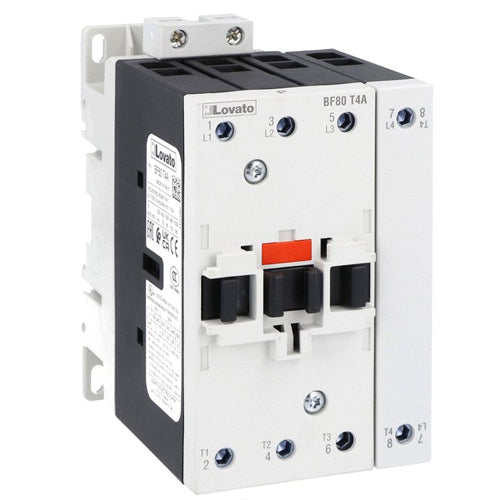

Lovato BF80T4A57560, BF Series Four-Pole Contactor, IEC Operating Current Ith (AC1) = 115A, AC Coil 60Hz, 575VAC, 4NO

In stock
SKU: BF80T4A57560
$808.96
Pole
Rated voltage
Contact

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Contactors
Number of Poles 4
Type of Coil AC coil 60Hz
Rated Coil Voltage [V] 575
IEC Operating Current Ith (AC1) [A] 115
IEC Operating Current and Power Ie (AC3) 400V [A/Kw] 80A / 45Kw
UL/CSA Horsepower Ratings 480V [HP] 60
Type of Built-in Auxiliary Contacts 4NO
Type of Mounting Screw / DIN rail 35mm
Operating Temperature -50°C - +70°C
HS Code 85365080
Certifications CCC, cULus
Compliance
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN/BS 60947-1
IEC/EN/BS 60947-4-1
UL 60947-1
UL 60947-4-1
