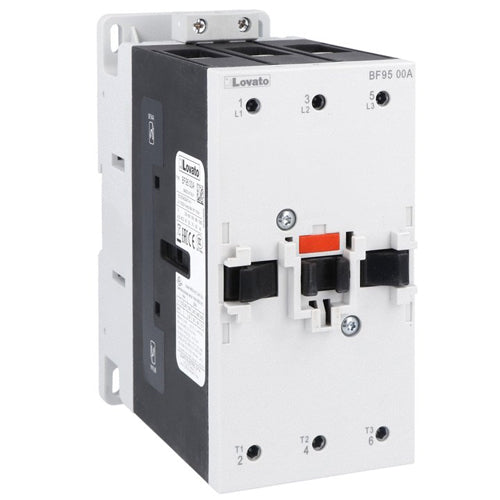

Lovato BF9500A12060, BF Series Three-Pole Contactor, IEC Operating Current Ie (AC3) = 95A, AC Coil 60Hz, 120VAC
Regular price
$777.10
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Contactors |
| Number of Poles | 3 |
| Type of Coil | AC coil 60Hz |
| Rated Coil Voltage [V] | 120 |
| IEC Operating Current Ith (AC1) [A] | 140 |
| IEC Operating Current and Power Ie (AC3) 400V [A/Kw] | 95A / 55Kw |
| UL/CSA Horsepower Ratings 480V [HP] | 60 |
| Type of Mounting | Screw / DIN rail 35mm |
| Operating Temperature | -50°C - +70°C |
| HS Code | 85365080 |
| Certifications | CCC, cULus |
| Compliance | IEC/EN/BS 60947-1 IEC/EN/BS 60947-4-1 UL 60947-1 UL 60947-4-1 CSA C22.2 n° 60947-1 CSA C22.2 n° 60947-4-1 |
