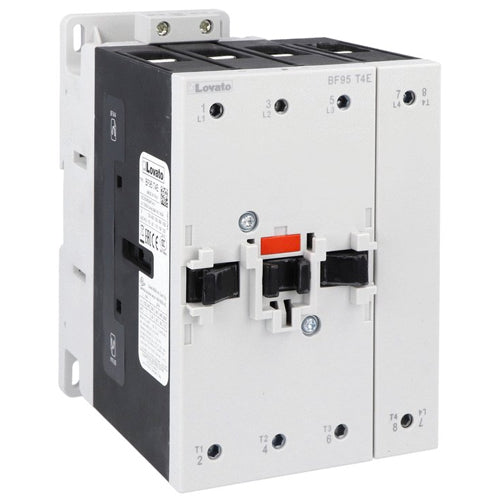

Lovato BF95T4E230, BF Series Four-Pole Contactor, IEC Operating Current Ith (AC1) = 140A, AC/DC Coil, 100...250VAC/DC, 4NO
Regular price
$1,228.19
Pickup available at 220 Alden Road
Usually ready in 24 hours
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Contactors |
| Number of Poles | 4 |
| Type of Coil | AC/DC coil |
| Rated Coil Voltage [V] | 100...250 |
| IEC Operating Current Ith (AC1) [A] | 140 |
| IEC Operating Current and Power Ie (AC3) 400V [A/Kw] | 95A / 55Kw |
| Rated Insulation Voltage Ui IEC/EN [V] | 1000 |
| Type of Mounting | Screw / DIN rail 35mm |
| Operating Temperature | -50°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus, CCC, EAC |
| Compliance |
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN/BS 60947-1
IEC/EN/BS 60947-4-1
UL 60947-1
UL 60947-4-1
|
