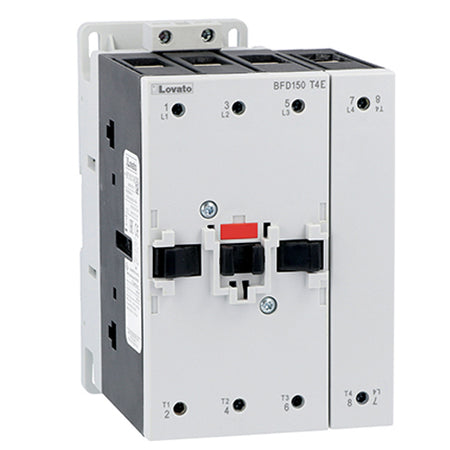

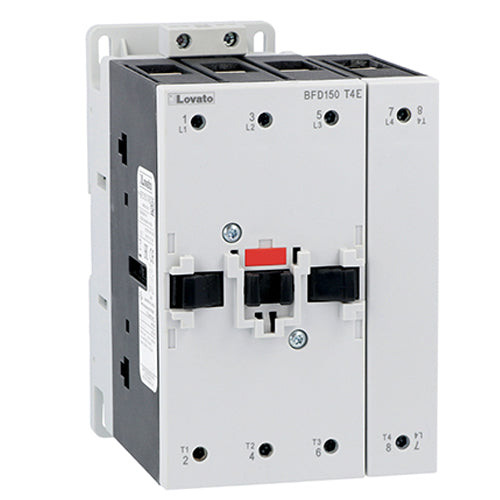

Lovato BFD150T4E024, BF Series Four-Pole Contactor for Photovoltaic Application, 100A/1000V DC1, AC/DC Coil, 20-48VAC/DC
Regular price
$2,456.34
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Contactors |
| Number of Poles | 4 |
| Type of Coil | AC/DC coil |
| Rated Coil Voltage [V] | 20...48 |
| IEC Conventional Free Air Thermal Current Ith [A] | 165 |
| IEC Max Current Ie in DC1 with L/R ≤ 1ms with 4 Poles in Series | 1000V/100A |
| For Photovoltaic Application | Yes |
| Type of Mounting | Screw / DIN rail 35mm |
| Operating Temperature | -40°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus |
| Conformity | IEC/EN/BS 60947-1 IEC/EN/BS 60947-4-1 UL 60947-1 UL 60947-4-1 CSA C22.2 n° 60947-1 CSA C22.2 n° 60947-4-1 |
