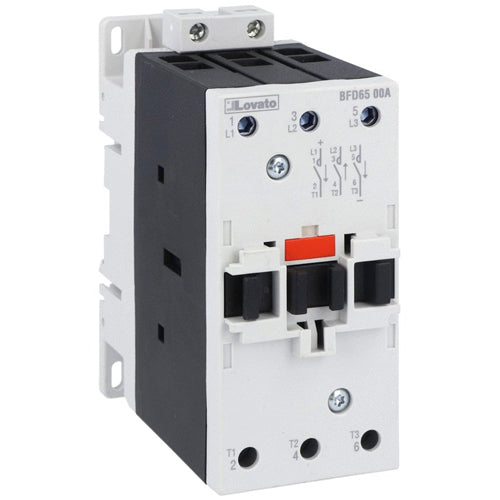

Lovato BFD6500A23060, BF Series Three-Pole Contactor for Photovoltaic Application, 35A/1000V DC1, AC Coil, 230VAC 60Hz
Regular price
$697.63
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Contactors |
| Number of Poles | 3 |
| Type of Coil | AC coil |
| Rated Coil Voltage [V] | 230 |
| IEC Conventional Free Air Thermal Current Ith [A] | 115 |
| IEC Max Current Ie in DC1 with L/R ≤ 1ms with 4 Poles in Series | 1000V/35A |
| For Photovoltaic Application | Yes |
| Type of Mounting | Screw / DIN rail 35mm |
| Operating Temperature | -50°C - +70°C |
| HS Code | 85365080 |
| Conformity | IEC/EN/BS 60947-1 IEC/EN/BS 60947-4-1 UL 60947-1 UL 60947-4-1 CSA C22.2 n° 60947-1 CSA C22.2 n° 60947-4-1 |
