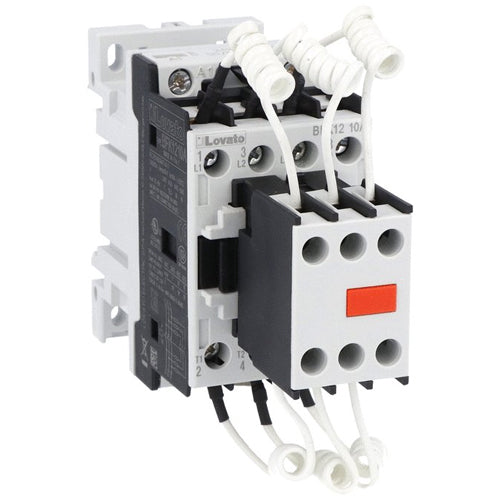

Lovato BFK1210A46060, Contactor for Power Factor Correction with AC Control Circuit, Including Limiting Resistors, Maximum IEC Operational Power 400V = 12.5kvar, Coil 460VAC 60Hz
Regular price
$297.66
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Contactors for power factor correction with AC control circuit |
| Number of Poles | 3 |
| Type of Coil | AC coil 60Hz |
| Rated Coil Voltage [V] | 460 |
| IEC Operational Power 400V [kvar] | 12.5 |
| Type of Built-In Auxiliary Contacts | 1NO |
| IEC Rated Operational Current ≤ 440V [A] | 18 |
| IEC Conventional Free Air Thermal Current Ith [A] | 28 |
| Type of Mounting | Screw / DIN rail 35mm |
| Operating Temperature | -50°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus, CCC, EAC |
| Conformity | IEC/EN/BS 60947-1 IEC/EN/BS 60947-4-1 UL 60947-1 UL 60947-4-1 CSA C22.2 n° 60947-1 CSA C22.2 n° 60947-4-1 |
