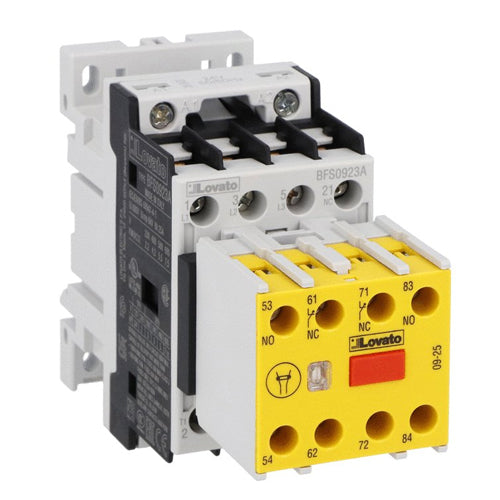

Lovato BFS0923A230, Three-pole Safety Contactor, IEC Operating Current le (AC3) = 9A, AC Coil 50/60Hz, 230VAC, 2NO+3NC Auxiliary Contact
Regular price
$122.16
Regular price
Sale
$144.16
Sale price
$122.16
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
230Vac 50-60Hz Control Coil, 3 Pole Safety Contactor, Motor Full Load Amps (FLA, IEC AC3 Rating) Maximum 600V 9A, UL/CSA General Purpose Use (AC1 Rating) 600V 25A, Incorporated Auxiliary Contacts 2NO+3NC, Screw and DIN Rail Mounting
| Type of product | Safety Contactor |
| Number of poles | 3 |
| Type of coil | AC coil 50/60Hz |
| Rated coil voltage [V] | 230 |
| IEC operating current Ith (AC1) [A] | 25 |
| IEC operating current and power Ie (AC3) 400V [A/Kw] | 9A / 4.2Kw |
| UL/CSA horsepower ratings 480V [HP] | 5 |
| Type of built-in auxiliary contacts | 1NC |
| Type of mounting | Screw / DIN rail 35mm |
| Width (in) | 1.77 |
| Height (in) | 3.35 |
| Depth (in.) | 4.60 |
| Compliance | CSA C22.2 n° 60947-1 CSA C22.2 n° 60947-4-1 IEC/EN/BS 60947-1 IEC/EN/BS 60947-4-1 IEC/EN/BS 60947-5-1 UL 60947-1 UL 60947-4-1 |
| Certificates | cULus UL listed for USA and Canada |
| Notes | Maximum Load Rating AC3 = 9A 690Vac, Resistive AC1 = 25A 690Vac |
