Home » Lovato BFS3222A230, Three-pole Safety Contactor, IEC Operating Current le (AC3) = 32A, AC Coil 50/60Hz, 230VAC, 2NO+2NC Auxiliary Contact
Lovato

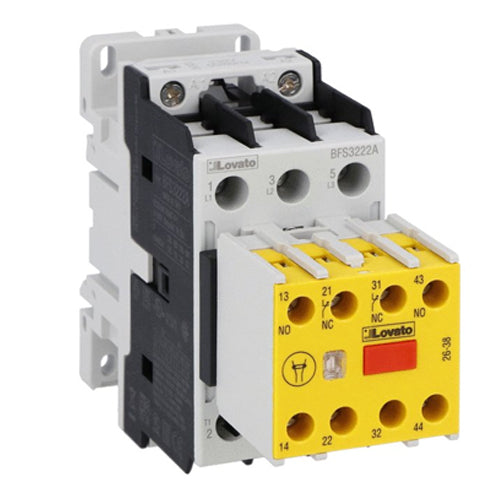

Lovato BFS3222A230, Three-pole Safety Contactor, IEC Operating Current le (AC3) = 32A, AC Coil 50/60Hz, 230VAC, 2NO+2NC Auxiliary Contact

In stock
SKU: BFS3222A230
$263.51
Sale $317.36 $263.51
Rated voltage
Pole
Contact

Use this text to encourage communication or promote sharing on social networks.

You can also add links

230Vac 50-60Hz Control Coil, 3 Pole Safety Contactor, Motor Full Load Amps (FLA, IEC AC3 Rating) Maximum 600V 32A, UL/CSA General Purpose Use (AC1 Rating) 600V 56A, Incorporated Auxiliary Contacts 2NO+2NC, Screw and DIN Rail Mounting

Type of product Safety Contactor
Number of poles 3
Type of coil AC coil 50/60Hz
Rated coil voltage [V] 230
IEC operating current Ith (AC1) [A] 56
IEC operating current and power Ie (AC3) 400V [A/Kw] 32A / 16Kw
UL/CSA horsepower ratings 480V [HP] 20
Type of built-in auxiliary contacts 0
Type of mounting Screw / DIN rail 35mm
Width (in) 1.77
Height (in) 3.54
Depth (in.) 4.95
Compliance CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN/BS 60947-1
IEC/EN/BS 60947-4-1
IEC/EN/BS 60947-5-1
UL 60947-1
UL 60947-4-1
Certificates cULus
UL listed for USA and Canada
