Home » Lovato BFS3822D024, Three-pole Safety Contactor, IEC Operating Current le (AC3) = 38A, DC Coil, 24VDC, 2NO+2NC Auxiliary Contact
Lovato

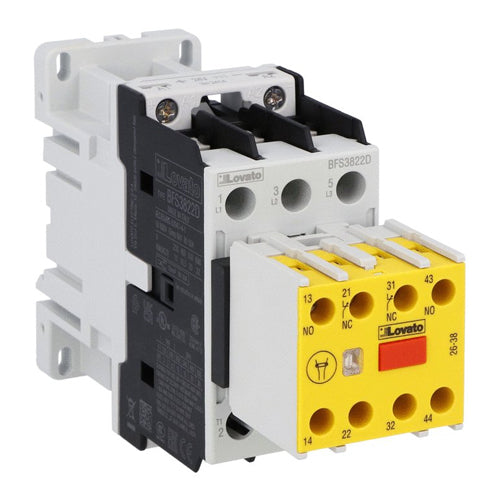

Lovato BFS3822D024, Three-pole Safety Contactor, IEC Operating Current le (AC3) = 38A, DC Coil, 24VDC, 2NO+2NC Auxiliary Contact

In stock
SKU: BFS3822D024
$391.27
Sale $471.20 $391.27
Rated voltage
Pole
Contact

Use this text to encourage communication or promote sharing on social networks.

You can also add links

24VDC Control Coil, 3 Pole Safety Contactor, Motor Full Load Amps (FLA, IEC AC3 Rating) Maximum 600V 38A, UL/CSA General Purpose Use (AC1 Rating) 600V 56A, Incorporated Auxiliary Contacts 2NO+2NC, Screw and DIN Rail Mounting

Type of product Safety Contactor
Number of poles 3
Type of coil DC coil
Rated coil voltage [V] 24
IEC operating current Ith (AC1) [A] 56
IEC operating current and power Ie (AC3) 400V [A/Kw] 38A / 18.5Kw
UL/CSA horsepower ratings 480V [HP] 30
Type of built-in auxiliary contacts 0
Type of mounting Screw / DIN rail 35mm
Width (in) 1.77
Height (in) 3.54
Depth (in.) 4.95
Compliance CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN/BS 60947-1
IEC/EN/BS 60947-4-1
IEC/EN/BS 60947-5-1
UL 60947-1
UL 60947-4-1
Certificates cULus
UL listed for USA and Canada
