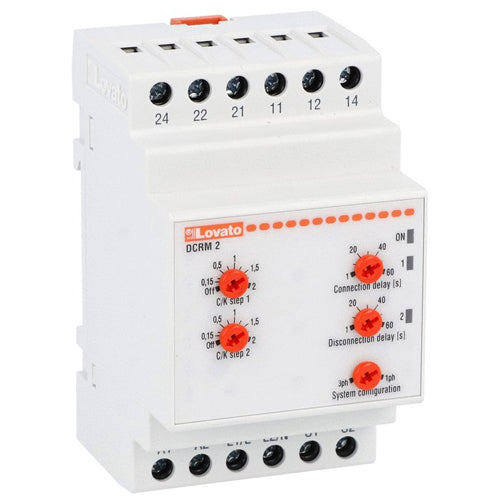

Lovato DCRM2, Reactive Current Controller Relay, DCRM Series, Single and Three-Phase Low-Voltage System, 2 Steps

In stock
SKU: DCRM2
$561.65
Control voltage

Use this text to encourage communication or promote sharing on social networks.

You can also add links

  • The DCRM allows the reactive current of a system to be controlled.
  • It allows to reach the best cosj value possible, reducing the request for reactive current from the mains.
  • It can control the connection of two capacitor banks.
  • Each one can be individually enabled and its power can be set through a dedicated trimmer.
  • It is also possible to adjust the time for connection and disconnection of the capacitors, thereby modifying the reaction speed of the system.
  • The controller can be used both in single-phase and three-phase wiring.
Type of Product Automatic power factor controllers
Number of Steps 2
Type of Power Factor Correction With contactors
Rated Auxiliary Supply Voltage Us 380...415VAC
Connection / Disconnection Delay 1...60s
System Configuration 3-phase - 1-phase
Contact Arrangement 2 x 1 C/O-SPDT
Rated Current 8A 250VAC AC1
Mounting On 35mm DIN rail (IEC/EN 60715) or by screws using extractible clips
Degree of Protection IP40 on front, IP20 at terminals
Operating Temperature -20°C - +60 °C
HS Code 85389091
Certifications EAC, cULus
Conformity IEC/EN 60255-5
IEC/EN 61010-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CSA C22.2 n°14
