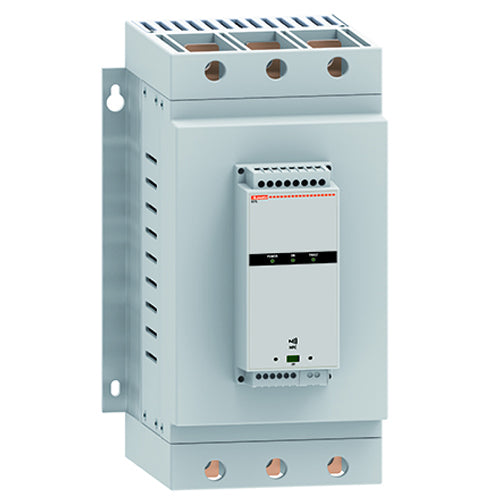

Lovato DCTLA4001000, Thyristor Module, 100Kvar at 400VAC, Rated Operating Voltage 400VAC, With Current Control
Regular price
$3,033.55
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Thyristor modules |
| Rated Voltage [VAC] | 400 |
| Step Power [kvar] | 100 |
| Rated Frequency [Hz] | 50/60 |
| Rated Current (Ie) [A] | 144 |
| Control Circuit | 12-24VDC input or free-voltage input or via RS485 serial port (with optional card EXC1042 in combination with controller DCRG8F + EXP1012) |
| Rated Auxiliary Supply Voltage Us | 100...240VAC |
| Material | Polycarbonate |
| Mounting | Screw fixing or DIN-rail (IEC/EN 60715) with optional accessory EXP8003 |
| Degree of Protection | IP00 |
| HS Code | 85371098 |
| Certifications | cULus |
| Conformity | IEC/EN 60947-4-3 IEC/EN 61000-6-2 IEC/EN 61000-6-4 |
