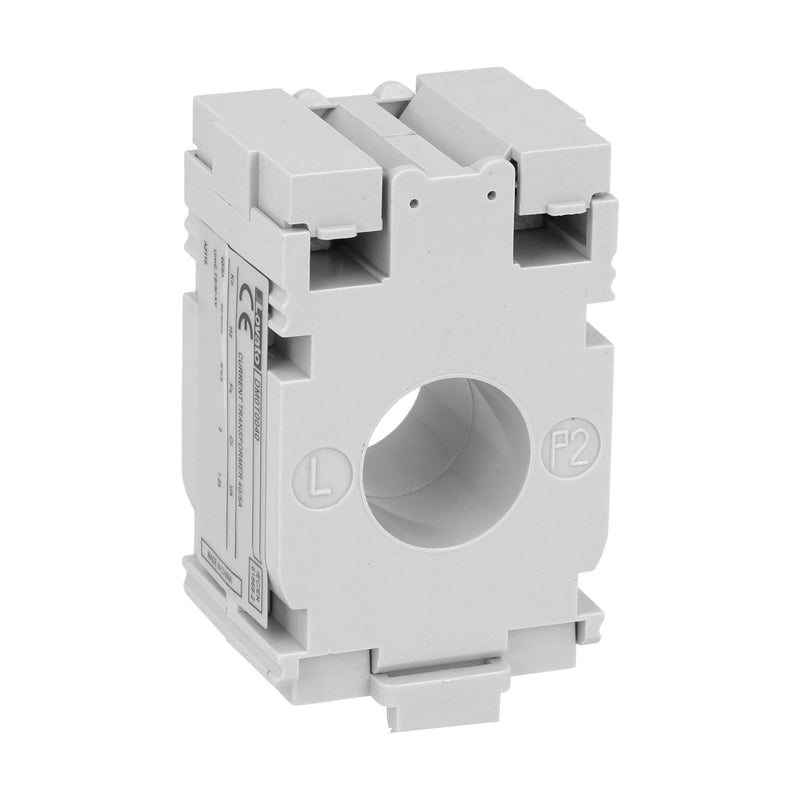

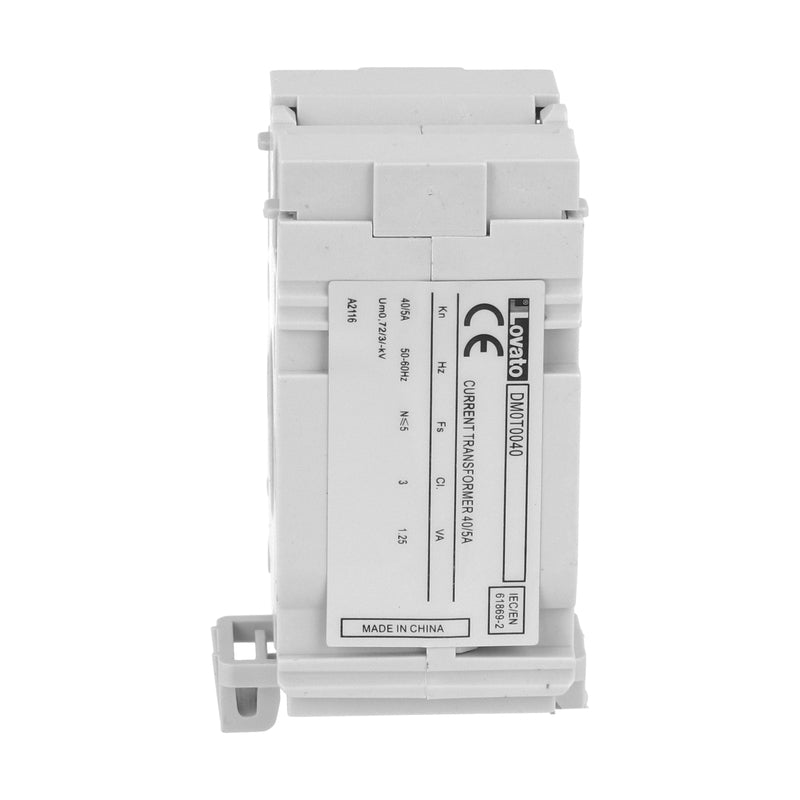

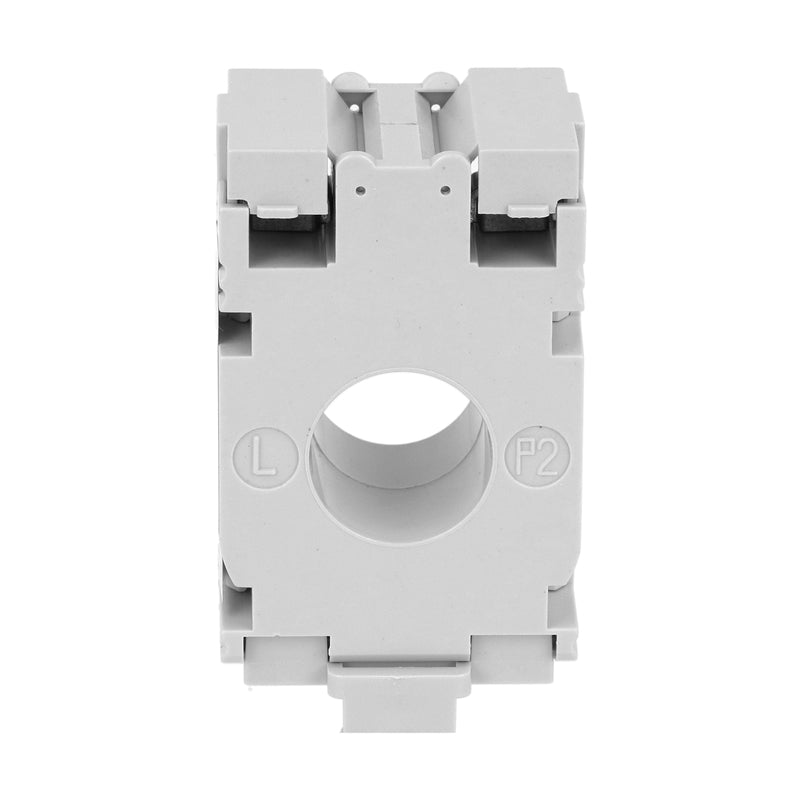

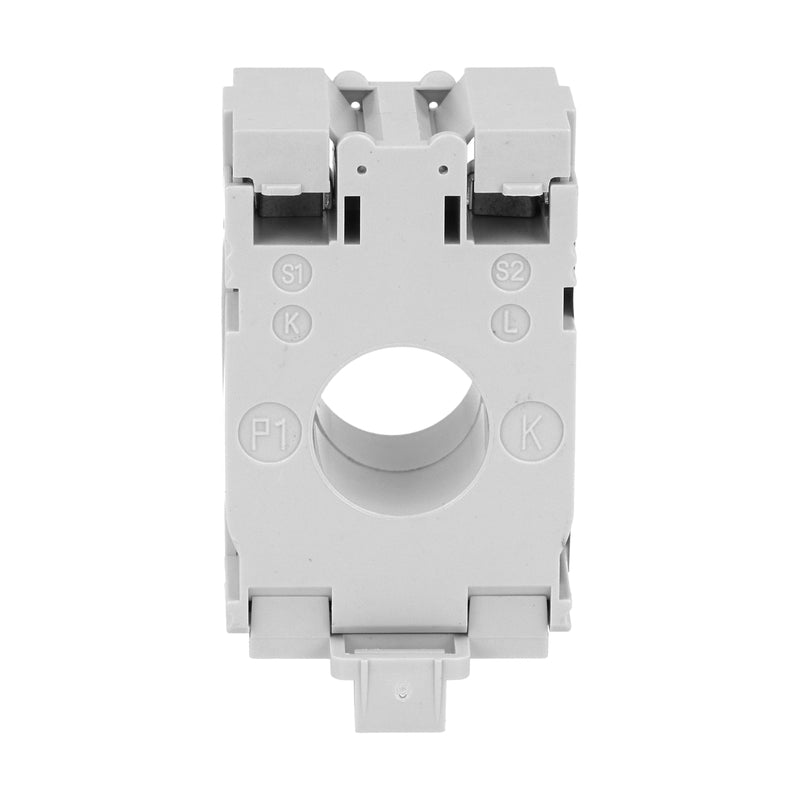

Lovato DM0T0040, Current Transformer, Solid-Core, For Ø22mm/0.87'' Cable, Primary Current 40A
Regular price
$76.07
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Current transformers |
| Type of CT | Solid-core |
| Primary Current Ipn (/5) [A] | 40 |
| Operational Frequency [Hz] | 50-60 |
| Secondary Output Current [A] | 5 |
| Overload Withstand Ipn [%] | 120 |
| Rated Insulation Voltage Ui IEC/EN [V] | 720 |
| Burden cl. 1 [VA] | 1.25 |
| Terminals Type | Screw |
| Fixing | DIN rail or by Screw |
| Operating Temperature | -25°C - +50 °C |
| Relative Humidity [%] | 90 |
| Protection Degree | IP30 |
| HS Code | 85389091 |
| Certifications | EAC |
| Conformity | IEC/EN/BS 61869-1 IEC/EN/BS 61869-2 |
